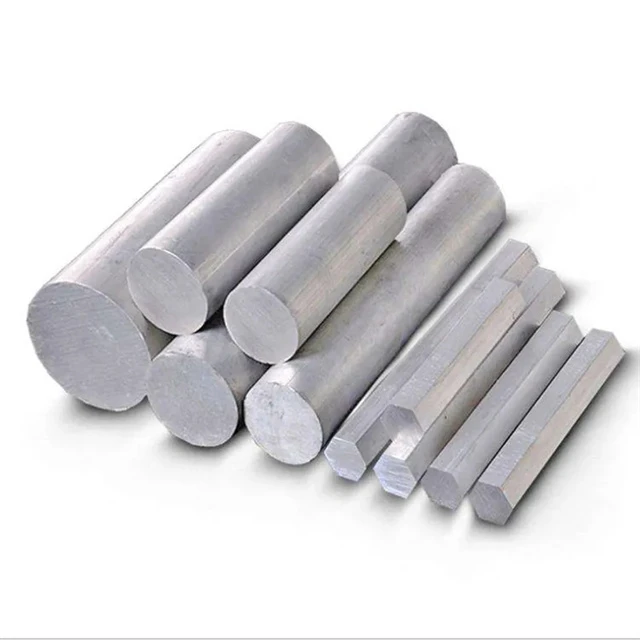

5052 Aluminum Round Bar
Customer service is online. Enter the chat to get the latest quotation.
Spot stock
Customize
Factory direct sale
7 days delivery
5052 Aluminum Round Bar Description
Because it contains elements like magnesium and chromium, aluminum 5052 is excellent at preventing corrosion and salt spray. It is a great option for long-term stress applications because of its moderate static strength and high fatigue resistance. It also exhibits exceptional weldability and cold formability. a well-known product in the sports, marine, and aerospace industries.
5052 Aluminum Round Bar Specification
| Item | Specification |
|---|---|
| Hot Selling Tempers | O, H12, H14, H16, H18, H22, H32, H34, H111, H112 |
| Processing | Heat-resistant, Cold working, Heat treatment, Mechanical processing, Welding |
| Surface Treatment | Black and shiny finish, Cold drawn and polished, Embossed, Centerless ground |
| Production Standards |
ASTM B221, ASTM B211, ASTM B565, ASTM B316, ASTM B209-2014, AMS 4114, AMS QQ-A 250/8, AMS-QQ-A-225/7, ISO AlMg2.5, AMS-WWT-700/4, UNS A95052 |
5052 aluminum CF round bar
High precision and smooth surface, perfect for electronic and automotive precision shafts and parts.
5052 aluminum extruded round bar
Have strong mechanical qualities and are frequently found in machinery and construction structural elements.
5052 aluminum forged round bar
High strength, are preferred for vehicle and aerospace engine parts.
5052 Aluminum cast round bar
Adaptable to large parts, it finds use in automotive and shipbuilding components.
5052 Aluminum hot rolled round bar
High strength, appropriate for the transportation and aerospace sectors.
5052 Aluminum cold rolled round bar
Valued for its smooth surface, making it perfect for the casings of household and automotive appliances.
Other popular shapes and sizes of GNEE 5052 aluminum bar rod products
| 5052 aluminum square bar | Diameter: 4-100mm, length can be cut |
| 5052 aluminum rectangular bar | 33×30 mm-295×1066 mm, length can be cut |
| 5052 aluminum hexagonal rod | 2-100mm A/F, length can be cut |
| 5052 angle Bar | 0.5 mm*40 mm*40 mm-20 mm*400 mm*400 mm |
5052 aluminum round bar rod performance parameter table
| Ultimate tensile strength | 33 ksi |
| Yield tensile strength | 28 ksi |
| Elongation at break percentage | 12% |
| Fatigue strength | 17 ksi |
| Hardness rockwell | Brinell | B17 | 60 |
| Modulus of elasticity | 10,200 ksi |
| Thermal conductivity | 960 BTU-in/hr-ft²-°F |
Weight calculation of 5052 aluminum bar rod
Aluminum round rod weight is calculated as follows: π R² * h × 0.0000027 (3.1415 * square of aluminum rod radius * aluminum rod length * density, radius length in mm).
The weight of an aluminum square rod is calculated as follows:Unit: mm; A side * B side * 0.0027 * h (side length * side length * density * aluminum rod length).
A short length will result in a higher cutting loss.
A tolerance of 1-3 mm should be allowed for the incision's width and length.
Equivalent name of 5052 aluminum bar
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg2.5 | AG2.5C | 3.3523 | A95052 | AlMg2.5 | 5052 | AlMg2.5 |
Advantages and applications of 5052 aluminum bar product
Because of its exceptional resistance to corrosion, 5052 aluminum is frequently used in tank construction, chemical storage containers, and maritime settings.
Lightweight, strong, and easy to weld, 5052 aluminum is used in sheet metal components, automobile bodies, ships, aircraft, and fuel pipes.
Heat treatment can improve the performance of 5052 aluminum, making it appropriate for uses like pressure vessels and storage tanks that call for specialized performance.
Applications requiring long-term stress resistance, like gear shafts, wheels, and aircraft components, can benefit from the fatigue resistance of 5052 aluminum.
Aluminum 5052 is a non-magnetic material that can be used in electrical manufacturing and electronic products where magnetic interference is prohibited.
Because it is simple to cold work, 5052 aluminum can be used to create intricately shaped parts like building panels, pedals, containers, and road signs.
