Premium Marine Grade Aluminum Plate Manufacturer
Customer service is online. Enter the chat to get the latest quotation.
Spot stock
Customize
Factory direct sale
7 days delivery
DNV/ABS/LR/BV/CCS Certified. Ready Stock for Immediate Shipment. Direct Factory Price.
1.Alloy 5083 Mechanical Properties
|
Aluminum Alloy |
Temper |
Rm/Mpa Tensile Strength |
Rp0.2/Mpa Yield Strength |
Elongation A/% |
Exfoliation Corrosion |
Intergranular Corrosion Mg/cm2 |
Certification |
|
5083 |
O |
≥275 |
≥125 |
≥16 |
- |
- |
BV,ABS,CCS,GL,DNV,LR |
|
H116 |
≥305 |
≥215 |
≥10 |
≤PB |
≤15 |
BV,ABS,CCS,GL,DNV,LR |
|
|
H321 |
305-385 |
215-295 |
≥12 |
≤PB |
≤15 |
BV,ABS,CCS,GL,DNV,LR |
2.5052 Aluminum Sheet & Plate Mechanical Properties
|
Material |
Temper |
Density g/cm^3 |
Ultimate Tensile Strength KSI |
Brinell Hardness 500 kg load |
Yield Tensile Strength KSI |
Rockwell Hardness B Scale |
Melting Point °F |
Shear Strength KSI |
|
Aluminum Alloy |
F,O,H12,H14, H16,H18,H19, H22,H24,H26, H28,H32,H34, H36,H38,H111, H112,H114 |
3 |
33 |
60 |
28 |
17 |
1125 - 1200 |
20 |
3.Aluminum 5086 Chemical Composition
|
Alloy |
AI |
Si |
Cu |
Mg |
Zn |
Mn |
Ti |
Cr |
Fe |
|
5086 |
Residual quantity |
≤0.40 |
≤0.10 |
3.5-4.5 |
≤0.25 |
0.20-0.7 |
≤0.15 |
0.05-0.25 |
0-.500 |
5086 Aluminum Sheet And Plate Mechanical Properties
|
Temper |
Tensile Strength/KSI |
Yield Strength/KSI |
Elongation/% |
|
O |
44 |
14 |
16 |
|
H32 |
47 |
28 |
12 |
|
H112 |
35 |
14 |
14 |
|
H116 |
40 |
28 |
10 |
4.Marine 6061 Aluminum Sheet & Plate Mechanical Properties
|
Material |
Temper |
Tensile Strength/Mpa |
Yield Strength/Mpa |
Elongation/% |
|
6061 Aluminum Alloy |
T6 |
≥260 |
≥240 |
≥9 |
|
T651 |
≥290 |
≥240 |
≥9 |
GNEE Marine Grade Aluminum Plate Advantages
Certified Quality
- 100% passed ultrasonic flaw detection.
- Mill Test Certificate (MTC) provided with shipment.
Wide Size Range
- Thickness 2mm-200mm, Width up to 2600mm.
- Customized cutting available.
Global Logistics
- Exported to 80+ countries.
- Professional moisture-proof packaging for sea freight
At GNEE - Aluminum Sheet Plate Manufacturer,
we manufacture top-quality aluminum in various shapes, sizes, and grades, ensuring that you'll always find exactly what you're looking for.
Thickness: 0.1- 300mm or as required
Width: 20 - 2000mm or as required
Length: 100 - 11800mm or as required
Any Size can be customized according to your needs
Surface: Anodized, Mill finished, Polished,Checkered (Diamond plate) etc.
Surface Protection: Paper interleaved, PE/PVC filming (if specified)
Certificates: ISO / SGS / BV / DNV / ABS / LR / CCS
Available International Price Term:
① EXW China ② FOB China Port ③ CIF/CFR Destination Port etc.

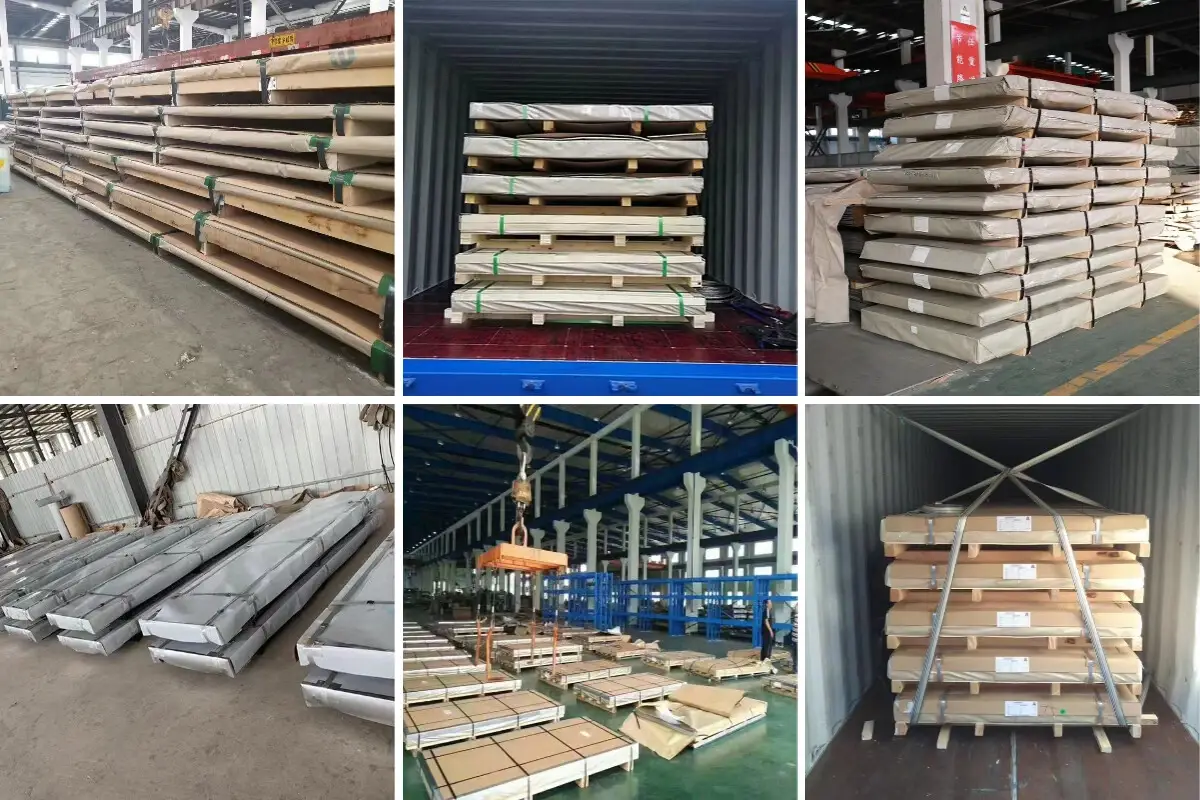

Packaging And Transportation

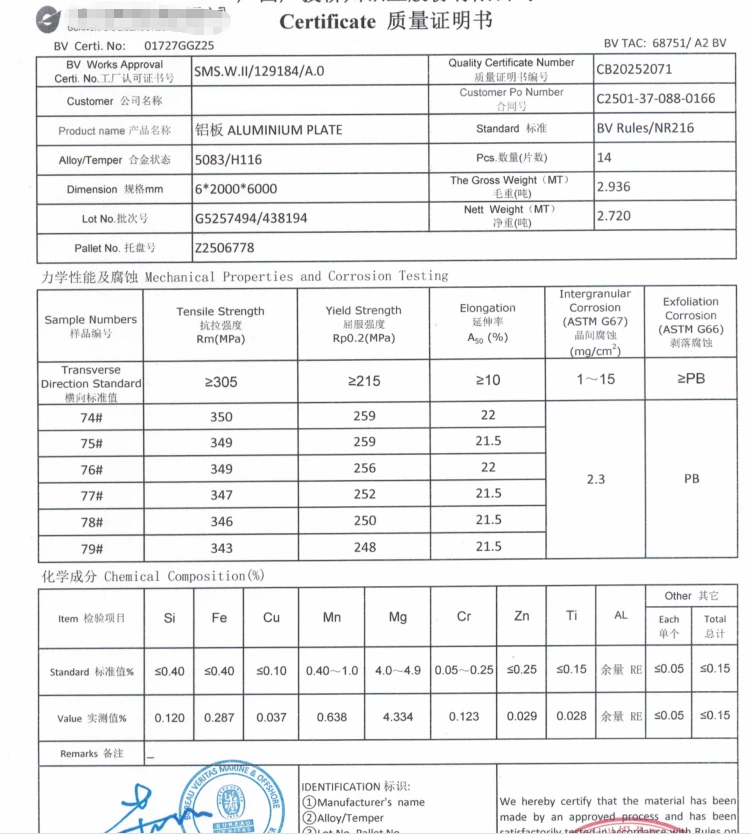

Marine Grade Aluminum Plate MTC
Need a quote? Our engineers will reply within 2 hours.
