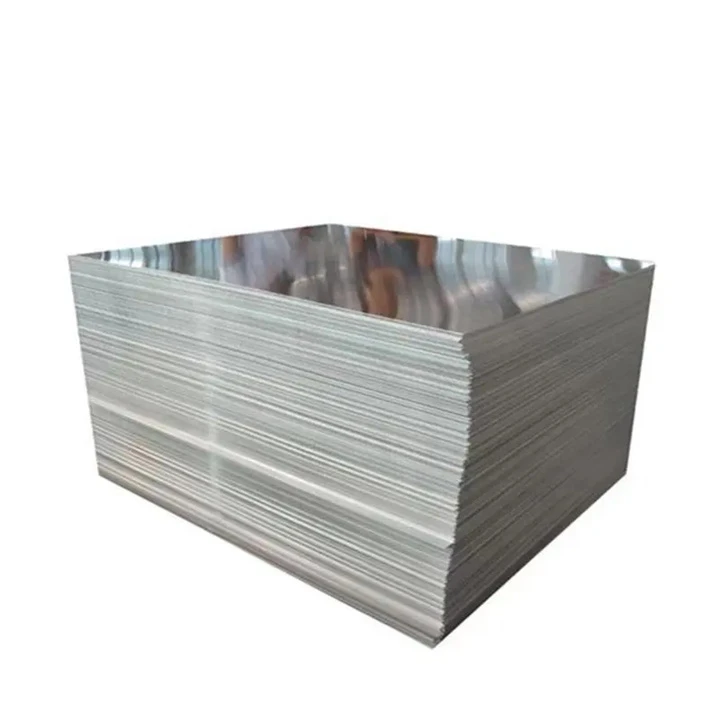

5052 Aluminum Sheet Plate
Customer service is online. Enter the chat to get the latest quotation.
Spot stock
Customize
Factory direct sale
7 days delivery
5052 aluminum plate exhibits high strength, particularly high fatigue strength, good weldability, good cold workability, and good corrosion resistance. Aircraft fuel tanks, oil pipes, sheet metal components for ships and automobiles, instruments, street lamp brackets and rivets, hardware items, electrical enclosures, etc. are all made from 5052 aluminum plate.
GNEE can meet your needs by accommodating standard sizes if you need to place customized orders or make bulk purchases.
UNS A95052 aluminum plate specifications
| name | 5052 aluminum plate | |
| Hot selling status | O, H111, H32, H34, H36, H38 | |
| Equivalent name | AW-AlMg2.5, 3.3523, A95052, AlMg2.5 | |
| 5052 aluminum sheet | Thickness: 0.01"-0.24" (0.2 mm-6 mm) | Width: 35.4"-104" (900 mm-2650 mm) |
| 5052 aluminum plate | Thickness: 0.24"-9.84" (6 mm-250 mm) | Width: 35.4"-104" (900 mm-2650 mm) |
| 5052 Ultra-wide aluminum sheet | Thickness: 0.24"-9.84" (6 mm-250 mm) | Width: 35.4"-104" (900 mm-4300 mm) |
| length | Max 6m, Fix & Cut Length or Customized | |
| surface treatment | Mill finish,Bright, polished, hairline, brush, sandblast, checkered, embossed, etching, etc. | |
| Lamination type | Blue film, transparent film, black and white film, paper (film thickness: 50 microns, 80 microns) | |
| standard | AMS 4015, AMS 4016, AMS 4017, ASTM B209, ASTM B928, AMS-QQ-A250/8, GB/T 3880 | |
Chemical composition of 5052 aluminium plate
| Element | Composition % |
| Al | REM |
| Si | ≤0.25 |
| Cu | ≤0.10 |
| Mg | 2.2 - 2.8 |
| Zn | ≤0.10 |
| Mn | ≤0.10 |
| Cr | 0.15 - 0.35 |
| Fe | ≤0.40 |
| Single | ≤0.05 |
| Total | ≤0.15 |
Mechanical properties of 5052 alloy aluminum plate
| 5052-O | 5052-H111 | 5052-H112 | 5052-H24 | 5052-H32 | 5052-H34 | |
| Tensile Strength | 79-190 MPa | 75-190 MPa | 89-200 MPa | 190-250 MPa | 180-230 MPa | 200-260 MPa |
| Shear Strength | 130 MPa | 120 MPa | 120 MPa | 150 MPa | 140 MPa | 150 MPa |
| Fatigue Strength | 26 MPa | 66 MPa | 73 MPa | 110 MPa | 120 MPa | 130 MPa |
| Elastic Modulus | 68 GPa | 68 GPa | 68 GPa | 68 GPa | 68 GPa | 68 GPa |
| Brinell Hardness | 47 | 46 | 55 | 67 | 60 | 68 |
| Elongation at Break | 22% | 19% | 10% | 8% | 12% | 10% |
Main features of GNEE aluminum 5052 aluminum metals plate
Clean and tidy surface, good flatness
Excellent anodizing quality
good mechanical performance
Medium- to high-strength alloy
Best welding characteristics
Good formability and corrosion resistance
The hot-selling custom 5052 aluminum plate products of GNEE
5052 H32 aluminum plate
High plasticity, good weldability, and good plasticity during semi-cold work hardening are all attributes of 5052 H32 aluminum sheet.
Application areas include aluminum fuel tank plates, bus trunk plates, anti-skid decorative plates, and car engine outer plates.
5052 H34 aluminum plate
Good formability and corrosion resistance are features of 5052 H34 aluminum sheet.
Applications include light special aluminum for car roofs, materials for car fuel tanks, car parts, etc.
5052 H24 aluminum plate
5052-H24 aluminum sheet is hard and soft, oxidizes and stretches easily, is highly plastic, and resists corrosion.
Application area: Mostly used for high-end decoration, stamping parts, etc.
5052 aluminum sheet
Its thickness ranges from 0.2 to 6 mm. Automobile aluminum alloy, 3C products, computer brackets, luxury curtain wall panels, luxury oxidation materials, buildings, louvers, trolley boxes, aluminum furniture, home appliances, and refrigerator linings are its primary applications.
5052 thick aluminum plate
Thick plate, which has a thickness of 6.0 to 600 mm, is primarily utilized for precision machining, silos, GIS shells, yachts, gas tanks, and mask machines.
GNEE 5052 aluminum rod-related recommendations
5052 aluminum round bar
5052 aluminum tube
5052 Aluminum Rivets Wire
5052 aluminum tread checkered plate
5052 Aluminum Sheet for Ring Pull
5052 O/H32/H34 Aerospace Aluminum Foil
GNEE 5052 aluminum sheet materials supplier
A state-of-the-art 1+4 4500mm hot rolling production line from SMS Group, manufactured in Germany, is installed at GNEE. Closed-loop control of thickness and sheet shape is made possible by the line's German IMS curvature gauge and Siemens electrical configurations. The hot rolling mill has temperature control systems, work roll bending with a multi-zone cooling system, hydraulic adjustment systems, and CVCplus technology. A light and heavy shear, edge trimming tools, coiling machines, waste transportation systems, and flue gas purification systems are also included. They use German-made 2800mm single-stand and double-stand CVC cold rolling mills from SMS Group for cold rolling, which have a maximum rolling force of 20,000 kN and can reach speeds of up to 1800 m/min. By reducing frequent quality problems, these cutting-edge production lines and technologies ensure excellent plate shape and surface quality.
FAQ
Q: What are your company's main products?
A: Our main products are aluminum plate/sheet, coil, round/square pipe, bar, etc.
Q: How do you control quality?
A: Mill Test Certification is supplied with shipment; Third Party Inspection is available. and we also get ISO, SGS.
Q: What are the advantages of your company?
A: We have many professionals, technical personnel, more competitive prices, and better after-sales service than other stainless steel companies.
Q: How many countries have you already exported to?
A: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan, India, etc.
Q: Can you provide a sample?
A: Yes. We can provide the small samples in stock for free, as long as you contact us. Customized samples will take about 5-7 days.
