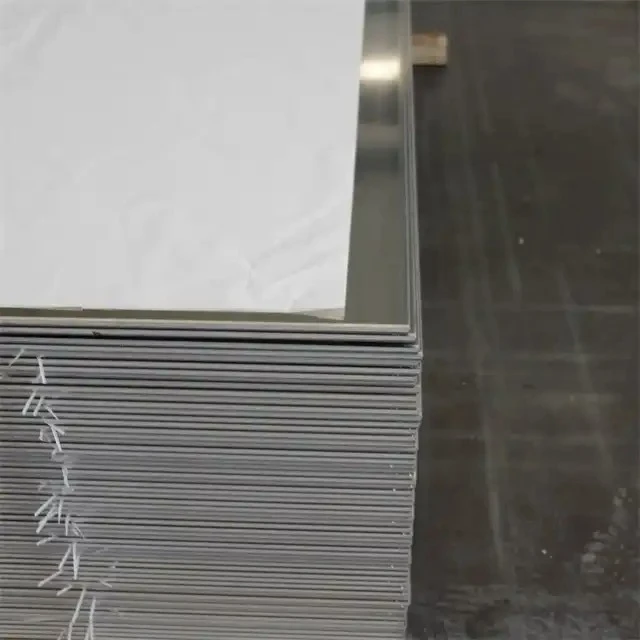

5005 Aluminum Alloy Sheet
Customer service is online. Enter the chat to get the latest quotation.
Spot stock
Customize
Factory direct sale
7 days delivery
| 5005 Aluminum Alloy Sheet |
5005 Aluminum Sheet is an Al-Mg alloy with low density and good thermal conductivity. Its strength is medium.5005 aluminum sheet cannot be heat treated. And it has high corrosion resistance in the alkaline marine environment.
5005 Aluminum Plate Chemical Composition
| Si | Cu | Mg | Zn | Mn | Ti | Fe | Cr |
| 0.30 | 0.20 | 0.5-1.1 | 0.20 | 0.20 | — | 0.70 | 0.10 |
5005 Aluminum Coil Characteristics
5005 aluminum plate has low density. high tensile strength, high elongation. good welding performance. Cannot be strengthened by heat treatment. Only cold working can improve strength.
5005 Aluminum Plate Mechanical Properties
| Tensile strength σb (MPa) | 100-205 |
| Elongationδ10(%) : 1 ~ 8 | 1-8 |
Specimen Size: all wall thickness
Note: longitudinal mechanical properties of tubes at room temperature
Technical Parameters
| Typical alloy | 5005 aluminium plate |
| Material State | F,O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38,H111,H112,H114 |
| Thickness | 0.1mm-500mm |
| Width | 20mm-2650mm |
| Length | 500mm-16000mm |
| Typical products | Curtain wall panels, cooking utensils, instrument shells, architectural decorations, oxide materials. |
Stock Information
| Specifications(mm) | Status |
| 0.9*1200*3000 | H32 |
| 2.5*1200*2400 | H32 |
| 0.7*1200*2400 | H32 |
| 3.0*1200*2400 | H32 |
| 2.5*1200*2400 | H32 |
Market Applications
Wide curtain wall panels, conductors, cooking utensils. Instrument panels, shells. Architectural decorations. Interior and exterior building materials. Vehicle interior materials.
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2. Do you have any certificates ?
Our products passed inspection of SGS, ISO Quality is priority!Every worker keeps the QC from the very beginning to the very end,Quality control department especially responsible for quality checking in each process.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
4. Why should you buy from us not from other suppliers?
We are experts in the supplying of materials to meet the individual requirements of a project, regardless of size, scope or difficulty. As a specialized supplier of highly qualified products such as Seamless/Welded Pipe and Tube, Plate and Equipment .
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
