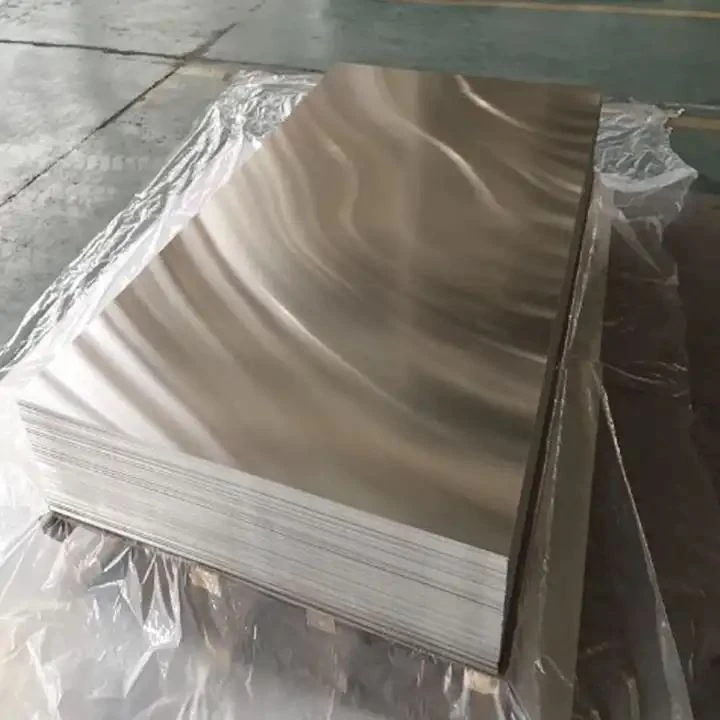

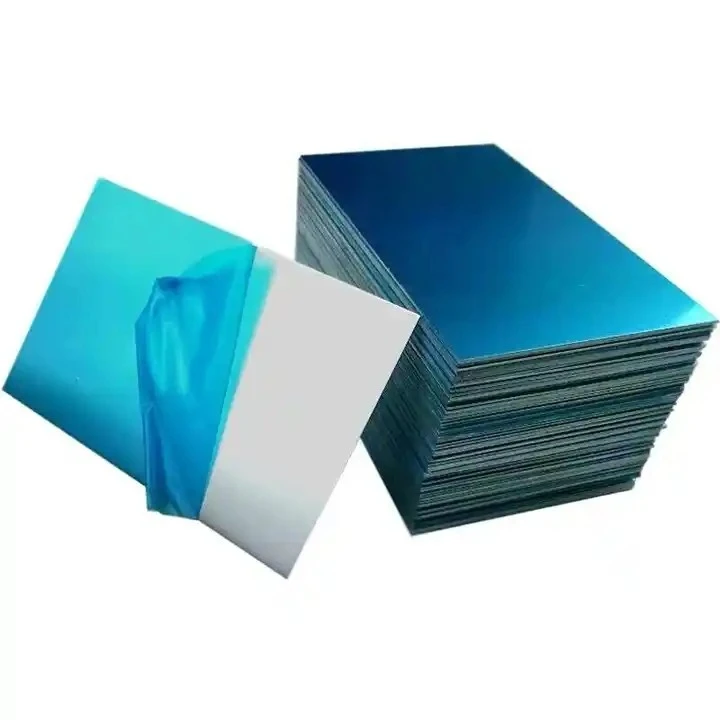

5005 Aluminum Sheet For Industry

5005 Aluminum Sheet for Industry

What is 5005 aluminum plate? 5005 is a common type of 5 series aluminum plate, which belongs to Al-Mg alloy, and the magnesium content is 3%-5%. Aluminum sheet 5005 is one of the more commonly used products in aluminum sheet and strip materials, also known as thermal insulation aluminum sheet, which can be well adapted to the use of pipeline thermal insulation packaging.



5005 aluminum sheet properties

The widespread use of 5005 aluminum alloy sheet benefits from the superior performance of 5005. Whether it is for household or industrial processing, a5005 aluminum sheet is a better raw material.

Tensile strength σb (MPa)	155～195
Conditional yield strength σ0.2 (MPa)	≥125
Elongation δ5 (%)	≥2
Note: Tensile mechanical properties of strip at room temperature Sample size: strip thickness＞0.8～1.3 State: Aluminum and aluminum alloy cold-rolled strip (0.8～1.3mm, H16, H26, H36 state) The aluminum plates can meet the performance requirements.



Annealing process of 5005 aluminum plate

Production process: melting and casting → uniform fire → sawing → milling → heating → hot rolling → medium temperature rolling → pre-cutting → finished annealing → straightening → cutting finished products → finished product acceptance.



Do annealing temperature affect the properties of 5005 sheet？

With the increase of the annealing temperature and the prolongation of the holding time, the tensile strength and yield strength of the 5005 aluminum alloy sheet gradually decreased, and the elongation increased gradually. The process of crystallization and grain growth. Before the annealing temperature of 200℃, the tensile strength, yield strength and elongation of the 5005 aluminum alloy sheet did not change significantly, and it was in the recovery stage at this time.

When the temperature is 200 ℃ ~ 310 ℃, the mechanical properties of the sheet change greatly. In this temperature range, a large number of new grains (ie nuclei) appear in the cold working structure, and gradually grow up, forming at 310 ℃, etc. The recrystallized grains of the shaft basically complete the recrystallization process. When the temperature is higher than 310 °C, the mechanical properties of the sheet do not change much and begin to stabilize, indicating that the recrystallization process has been completed.

Therefore, the annealing holding time has little effect on the tensile strength, yield strength and elongation of 5005 aluminum alloy sheet.



The difference between 5005 aluminum plate and other alloys

Among the 5000 series aluminum plates, in addition to 5005, there are 5083 aluminum sheet, 5052 aluminum plates, 5252 aluminum plates, 5454 aluminum plates, 5754 aluminum plates, 5A02 aluminum plates, and 5A03 aluminum plates. The difference between 5005 and the same series of alloy plates is not big, but it is quite different from 3003 aluminum plate of 3000 series, 🔗061 aluminum sheet of 6000 series, and 6082 aluminum plate.



What is the difference between 3003 and 5005 aluminum?

Aluminum 5005 vs 3003: The strength of 5005 aluminum plate is equivalent to that of 3003. 5005 belongs to aluminum-magnesium alloy and is not hardened by heat treatment. It can increase the hardness by cold rolling. 3003 belongs to aluminum-manganese alloy, which cannot be strengthened by heat treatment, and its mechanical properties are improved by cold working method. Good workability 5005 aluminum plate is similar to 3003 alloy, with medium strength and good corrosion resistance.

What is the difference between 5005 and 5052 aluminium?

5005 aluminum vs 5052:The hardness of 5005 alloy aluminum plate is not as good as that of 5052, and it is often used in thermal insulation materials, while 5052 is often used in scenarios with high corrosion resistance requirements. 5052 aluminum plate is a widely used anti-rust aluminum, and its products are widely used in trolley cases, fuel tank materials, liquid crystal backplanes, tank materials, door materials and other fields.

What is the difference between 5005 and 6061 aluminium?

5005 aluminum vs 6061

The 6061 aluminum plate is generally in the state of T6 and T651, and the 5005 aluminum plate is generally in the state of H12, H24, H32, and H34; It is the anti-rust function, not the anti-strength function.
