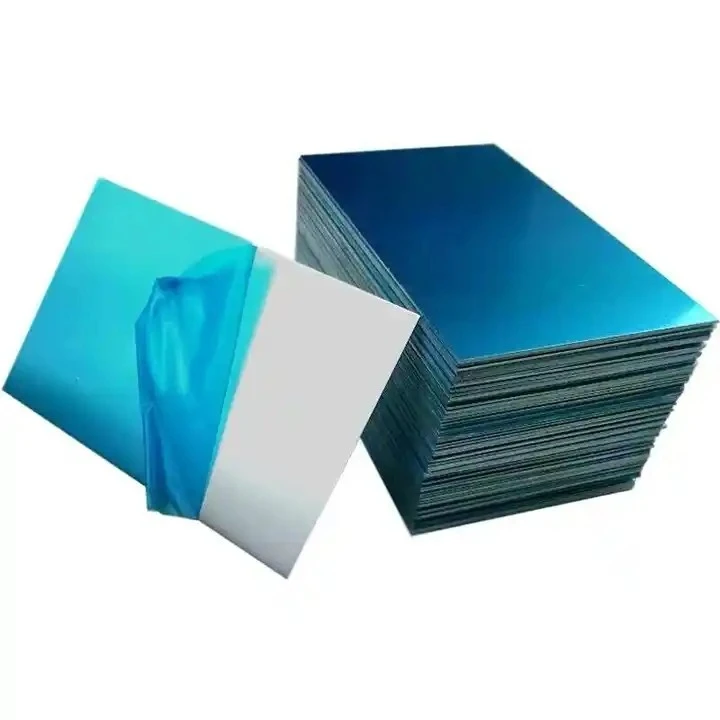

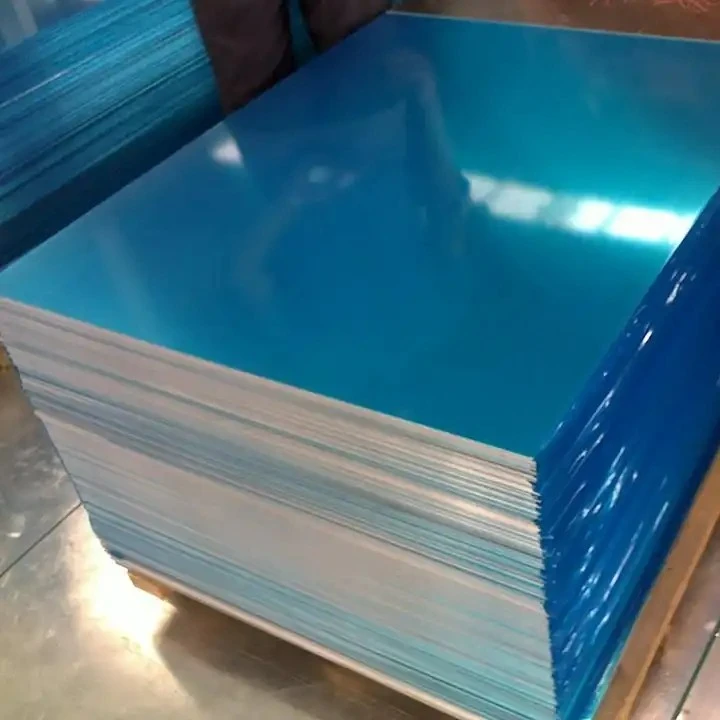

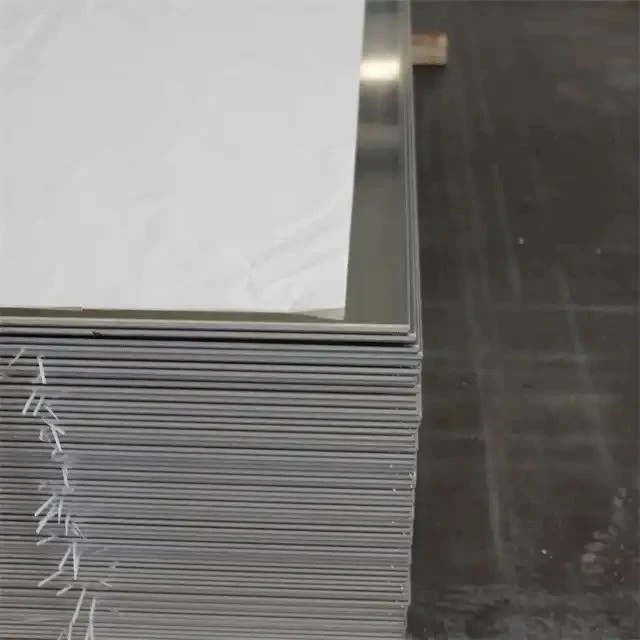

5A03 Aluminum Sheet For Construction

5A03 aluminium sheet is the most commonly used material in the construction field, and also belongs to 5 series Al-Mg anti-rust alloy. In terms of composition, the Mg content of 5A03 aluminium is slightly higher than that of 5754 aluminium alloy, so 5A03 aluminium sheet corrosion resistance and tensile strength are higher than those of 5754 alloys. And due to the addition of a small amount of Si, 5A03 aluminium alloy has better weldability than 5754 and 5A02 alloy. Besides, 5A03 aluminium plate is easy to process, easy to colour, strength is not affected by temperature and humidity, strong weather resistance, no low-temperature brittleness, and other characteristics, is widely used for the sound barrier of the expressway, elevated composite road, railway, urban light rail subway, and other traffic facilities.

Specifications of 5A03 Aluminium Sheet

Chemical Composition of 5A03 Aluminium Sheet

The Features of 5A03 Aluminum Sheet

Significant Weldability. Due to the Si content, the 5A03 aluminium sheet has better weldability than 5754, 5A02 alloy, and is suitable for gas welding, argon arc welding, spot welding and roll welding, etc. At the same time, a small amount of Si also increases the strength between welds and reduces the crack tendency.

Strong Weather Resistance. Even below 0℃, 5A03 aluminum sheet strength won’t decrease with the decline of temperature but will increase, with excellent fatigue strength. There’s no low-temperature brittleness.

Mechanical Properties. 5A03 aluminium sheet tensile strength σb (MPa)≥172, elongation δ5 (%)≥12, conditional yield strength σ0.2 (MPa)≥81.

Applications of 5A03 Aluminum Sheet

5A03 Aluminium Sheet for Sound Barriers

5A03 aluminum sheet, 5754 aluminium sheet are the two main materials of the sound barrier of railway/high-speed/subway and another traffic road. As for the 5A03 aluminium sheet, it has slightly higher corrosion resistance, which can be used in traffic environments with higher requirements on corrosion resistance. In addition, the 5A03 aluminum alloy, with good reflectivity, sound insulation, weather resistance, no low-temperature brittleness, and anodic oxidation, maximizes the use of sound barrier sound insulation and noise reduction, and increases the service life!

Packing Detail of 5A03 Aluminium Sheet

The standard export packaging, plastic film or craft paper covered at customers’ requirements. Wooden case or wooden pallet is adopted to protect products from damage during the delivery.

Q:Can I get some samples ？What product information do I need to Provide ？
A:We can provide the free sample，But we don't bear the sample freight cost ，And you need to provide the grade （alloy number）and temper，diameters，length and quantity.

Q:What is Your MOQ:
A:Over 6-8 tons ,we also can accept the customized Size

Q: How long is your delivery time?
A:Within 5 days for stock size, 15-30 days for customized size.

Q:Can provide OEM/ODM service?
A:Yes. Please feel free to contact us for more details.

Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.

Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.
