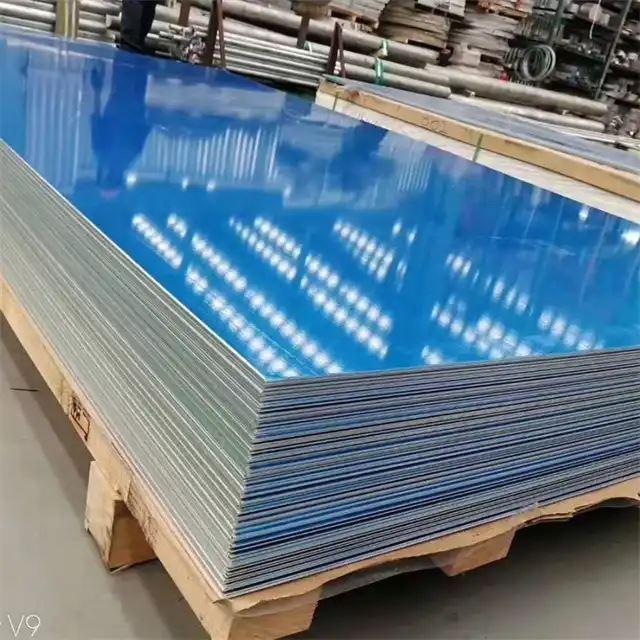

| 6082 Temper T651 Aluminum Sheet |
6082 aluminum sheet is a relatively good alloy aluminum sheet in the 6 series aluminum plate (Al-Mg-Si). The 6 series is aluminum alloy with magnesium and silicon as the main alloying elements. , T6 and t651 temper. 6082 aluminum plate is widely used in many fields from thin sheet to thick sheet. If it is ultra wide and thick 6082 aluminum sheet, it is more used in transportation fields such as automotive aluminum and marine aluminum manufacturing. 6082 aluminum sheet is a perfect lightweight material.
6082 Aluminum Sheet Features:
6082 and 6061 aluminum plate are both Al-Mg-Si aluminum alloy which can be strengthened by aging treatment, with good extrusion and forging properties, and good anodizing properties. In addition, 6082 aluminum sheet also has the following characteristics:
Good formability, solderability and brazeability.
It has medium strength and good machinability.
Good usability and excellent interface characteristics.
Easy to process, good anode reaction performance and easy coating.
Good corrosion resistance and oxidation resistance.
6082 Aluminum Plate Chemical Composition:
|
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others |
Aluminium min. |
|
|
Each |
Total |
|||||||||
|
0.7-1.3 |
0.5 |
0.1 |
0.4-1.0 |
0.6-1.2 |
0.25 |
0.2 |
0.1 |
0.05 |
0.15 |
Remainder |
6082 Aluminum Sheet Mechanical Properties:
|
BS EN 485-2:2008 Sheet 0.4mm to 6.00mm, 6082/O |
|
|
Property |
Value |
|
Proof Stress |
85 Max MPa |
|
Tensile Strength |
150 Max MPa |
|
Hardness Brinell |
40 HB |
|
BS EN 485-2:2008 Sheet 0.4mm to 6.00mm, 6082/T6, 6082/T651 |
|
|
Property |
Value |
|
Proof Stress |
240 Max MPa |
|
Tensile Strength |
275 Max MPa |
|
Hardness Brinell |
84 HB |
|
Elongation A50 mm |
6 Min % |
|
BS EN 485-2:2008 Plate 6.00m to 12.5mm, 6082/T6, 6082/T651 |
|
|
Property |
Value |
|
Proof Stress |
255 Min MPa |
|
Tensile Strength |
300 Min MPa |
|
Elongation A50 mm |
9 Min % |
|
Hardness Brinell |
91 HB |
|
BS EN 485-2:2008 Plate 12.5 m to 100.0 mm, 6082/T6, 6082/T651 |
|
|
Property |
Value |
|
Proof Stress |
240Min MPa |
|
Tensile Strength |
295 Min MPa |
|
Elongation A50 mm |
9 Min % |
|
Hardness Brinell |
89 HB |
|
BS EN 485-2:2008 Plate 100.0 m to 150.0 mm, 6082/T6, 6082/T651 |
|
|
Property |
Value |
|
Proof Stress |
240 Min MPa |
|
Tensile Strength |
275 Min MPa |
|
Elongation A50 mm |
6 Min % |
|
Hardness Brinell |
84 HB |
6082 Aluminum Sheet Size Information:
|
Thickness: |
0.1-600mm |
|
Width: |
100-3000m |
|
Length: |
500-16000mm |
|
Temper: |
O, T3, T4, T5, T6, T651, T451, T42, T62, etc. |
|
Standard: |
GB/T3880, GJB1541, GB/N167, JB2053, GJB2662, ASTM B209, ASME SB-209, EN 485, BS EN 573 |
