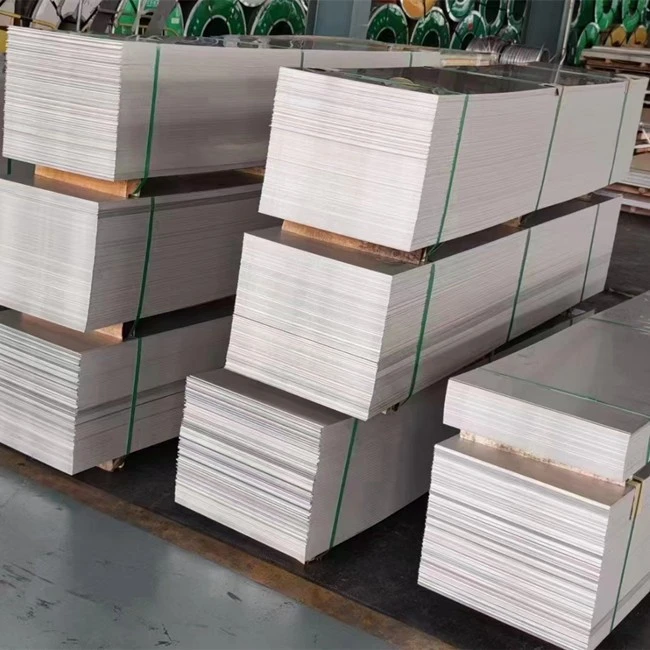

Aluminium 7075 Sheets And Plates

Aluminium 7075 Sheets and Plates

Alloy 7075 sheet and plate products have application throughout aircraft and aerospace structures where a combination of high strength with moderate toughness and corrosion resistance are required. Typical applications are alclad skin sheet, structural plate components up to 4 inches in thickness and general aluminum aerospace applications







7075 Aluminium sheets is used where high strength is critical and where good corrosion resistance is not important. It is classed as a very high strength aluminium aerospace alloy with superior stress corrosion resistance.

7075 aluminium alloy's composition roughly includes 5.6–6.1% zinc, 2.1–2.5% magnesium, 1.2–1.6% copper, and less than a half percent of silicon, iron, manganese, titanium, chromium, and other metals. It is produced in many tempers, some of which are 7075-0, 7075-T6, 7075-T651.We also large stockiest of aluminium 7075 round bars and other aerospace alloys.

Corrosion Resistance

Alloy 7075 has been thoroughly evaluated for corrosion resistance of atmospheric weathering, stress-corrosion cracking and exfoliation in all currently available tempers.These values have been used as a standard for comparison in the development of more recent high strength aerospace alloys. Within the 7XXX series of alloys, resistance to general corrosion attack, SCC and exfoliation improves significantly in the overage tempers (T7 type) compared with peak strength tempers (T6).

Aluminium 7075 Sheet & Plates Equivalent Grades :

UNS	EN	DIN,WNr	JIS	AFNOR	ISO	BS	GOST
A97075	ENAW-AlZn5.5MgCu EN AW-7075	3.4365 AlZnMgCu1.5	7075	7075 A-Z5GU	AlZn6MgCu	7075 L95 L96	V95

aluminium 7075 chemical composition Sheets & Plates :

Grade	Element
	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti
7075	0.40	0.50	1.2/2.0	0.30	2.1/2.9	0.18/0.28	5.1/6.1	0.20

Mechanical Properties Of Aluminium Alloy 7075 Sheets & Plates:

Properties	Metric
Tensile strength	83-73 Ksi
Yield strength	73-63 Ksi
Hardness Brinell	150
Elongation	13-11%

Physical Composition Of Aluminium Alloy 7075 Sheets & Plates :

Properties	Metric
Density	2.80 Mg/m³
Melting point	532°C - 635 °C
Specific Heat (212 °F / 100°C	960 J/kg-°K

Aluminium 7075 sheets and plates Features

Excellent for anodizing

Corrosion Resistance

Good Tensile Strength

Excellent Heat Resistant

Toughness

Good acceptance

Excellent corrosion resistance

Best in class strength,

Dimensional stability,

Good anodization response

Aluminium 7075 sheets and plates Applications

Aircraft

Structure Screw Machine Products

Housings,

Hydraulic Parts

Automotive

marineindustries

Renewable Energy

Mass Transportation



Aluminium 7075 sheets and plates Material Testing:

We at are ensure that all our materials go through strict quality tests before dispatching them to our clients.

Mechanical Testing Such as Tensile of Area

Hardness Test

Chemical Analysis – Spectro Analysis

Positive Material Identification – PMI Testing

Flattening Test

Micro and MacroTest

Pitting Resistance Test

Flaring Test

Intergranular Corrosion (IGC) Test

Disclaimer
Every effort is made to ensure that technical specifications are accurate. However, technical specifications included herein should be used as a guideline only. All specifications are subject to change without notice.

Provide all grade of these alloy by different shape & size is Our expertise.
