3105 aluminum belongs to 3 series aluminium alloy, which contains 98% pure aluminium and small amount of Cu Mg, Mn and Si.

Send Inquiry

Chat Now

Customer service is online. Enter the chat to get the latest quotation.

Spot stock
Customize
Factory direct sale
7 days delivery

Product Introduction

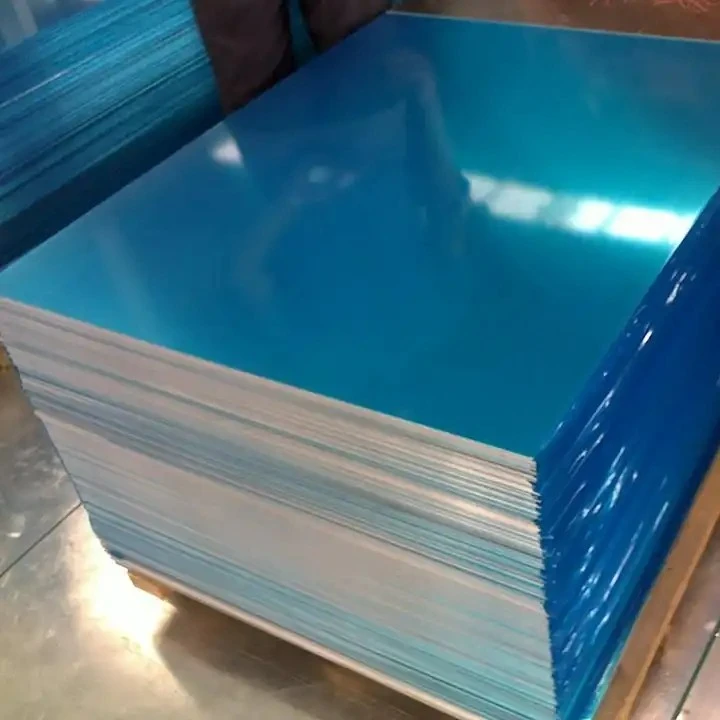

3105 H14 Aluminum Sheet

3105 aluminum belongs to 3 series aluminium alloy, which contains 98% pure aluminium and small amount of Cu Mg, Mn and Si. therefore, the electrical conductivity is good, with 41% electrical conductivity; it also has good formability and weldability. 3105 aluminium sheet all the conventional process of forming characteristics and tempering state is basically irrelevant; 3105 aluminium sheet has good cold working characteristics, but does not respond to heat treatment. 3105 aluminum sheet is light in weight It has a smooth surface and is widely used in many fields.

Temper	Specified thickness mm		R_mMpa		R_p0.2Mpa		Elongation min. %		Bend radius^a		Hardness HBW^a
Temper	over	up to	min.	max.	min.	max.	A_50mm	A	180°	90°
F^a	≥2.5	80	100
O/H111	0.2	0.5	100	155	40		14		0 t		29
	0.5	1.5	100	155	40		15		0 t		29
	1.5	3	100	155	40		17		0.5 t		29
H12	0.2	0.5	130	180	105		3		1.5 t		41
	0.5	1.5	130	180	105		4		1.5 t		41
	1.5	3	130	180	105		4		1.5 t		41
H14	0.2	0.5	150	200	130		2		2.5 t		48
	0.5	1.5	150	200	130		2		2.5 t		48
	1.5	3	150	200	130		2		2.5 t		48
H16	0.2	0.5	175	225	160		1				56
	0.5	1.5	175	225	160		2				56
	1.5	3	175	225	160		2				56
H18	0.2	0.5	195		180		1				62
	0.5	1.5	195		180		1				62
	1.5	3	195		180		1				62

3105 Aluminium Sheet Feature:

The corrosion resistance of 3105 aluminium sheet is excellent not only in air but also in dilute acid environment, so it is used in many special environments. It is also good in hardness, about 10%-20% harder than pure aluminium sheet, and can be enhanced by cold working treatment.

3105 Aluminium Sheet Applications:

Bottle cap material, 3105 aluminium sheet has excellent deep punching performance, which can meet the design of bottle mouth of different wine products.

Mobile panel house, 3105 aluminium sheet is very suitable for the wall of mobile panel house because it can easily form a dense aluminum oxide protective film on the surface even in a very humid environment, which has strong corrosion resistance. It can quickly form a new protective film when there are scratches or other damages on the surface of the film.

Color coating, 3105 aluminium sheet can be used to make color coated aluminium substrates, rain gear, lamp holders, blinds, etc. After anodic oxidation processing, the surface of 3105 aluminium sheet can be coated with rich colors, and it is not easy to deform, and the color stays for a long time.
