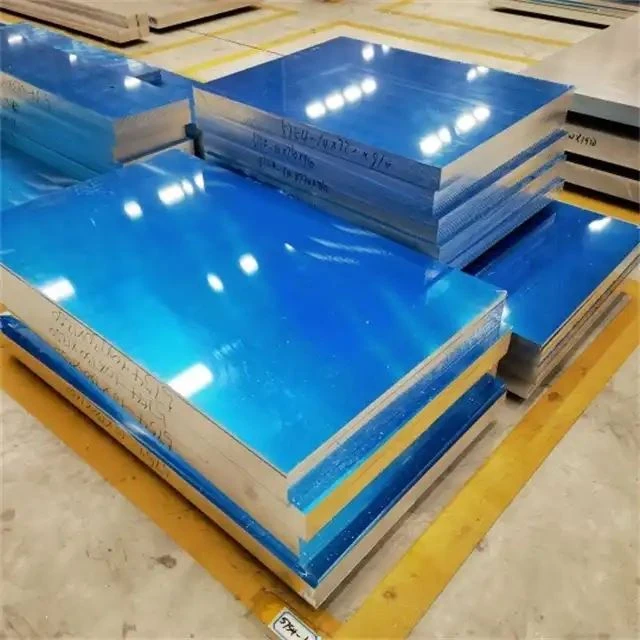

6061 T651 Aluminum Sheet

6061 T651 Aluminum Sheet



6061 Aluminum Sheet is an aluminum alloy plate with Si and Mg as the main elements. The content of Mg and Si is 0.8-1.2% and 0.4-0.8%. 6061 aluminum alloy is a very important one in the 6000 series aluminum alloys.

Uses and advantages of thin 6061 aluminum sheet:

White surface/bright surface. No milling required. Cost-saving. Widely used in 3C fields such as mobile phone card slots, buttons, computer brackets, computer shells, trolley boxes, aluminum furniture, door panels/door handles. 6061 aluminum alloy sheets can be used for 5G mobile phones

Uses and advantages of 6061 medium-thick aluminum plate:

The internal stress is relieved, and the cutting will not deform. It is widely used in underwear molds, shoe molds, precision machining. Passenger car decorative panels/checkered plates, car chassis protection parts, car four doors, two covers, car wheels, car seats.



6061 Aluminum Sheet Chemical Composition

Si	Cu	Mg	Zn	Mn	Ti	Fe	Cr
0.4-0.8	0.15-0.40	0.8-1.2	0.25	0.15	0.15	≤0.70	0.04-0.35

6061 Aluminum Sheet Characteristics

6061 aluminum alloy plates are easy to process and weld, electroplate good toughness.

Not easy to deformation

Easy to polish and surface treatment

Strong corrosion resistance

6061 Aluminum Sheet Mechanical Properties

Tensile strength σb (MPa)	≥205
Conditional yield strength σ0.2(MPa)	≥55.2
Elongation δ5(%)	≥15

Specimen Size: all wall thickness

Note: longitudinal mechanical properties of tubes at room temperature

6061 Aluminum Sheet Heating Treatment

Rapid annealing

Heating temperature 350 ~ 410 °C, holding time 30 ~ 120 min depending on material effective thickness. Air or water cooling.

High temperature annealing

The heating temperature is 350 ~ 500 °C, the holding time is 10 ~ 30min when the thickness of the finished product is ≥6mm. Stops after heat penetration when the thickness of the finished product is less than 6mm. Air Cooling.

Low temperature annealing

The heating temperature is 150 ~ 250 °C and the holding time is 2 ~ 3h. Air or water cooling. Homogenization annealing 570 degrees Celsius, seven hours of insulation. Air cooling

Technical Parameters

Typical alloy	6061 aluminium plate
Material State	F,O,T4,T6,T651,H112
Thickness	0.3mm-500mm
Width	100mm-2800mm
Length	500mm-16000mm
Typical products	Mobile phone card slot, mobile phone case, mold, automobile, mask machine, precision machining
