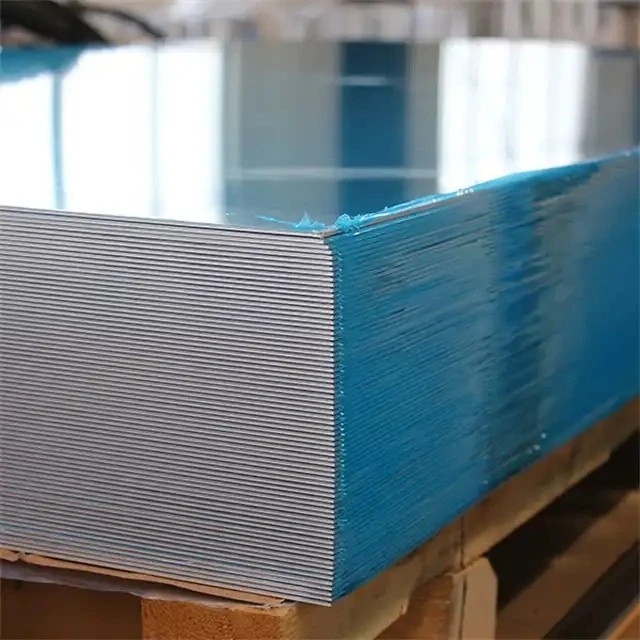

6060 Aluminum Sheet
Customer service is online. Enter the chat to get the latest quotation.
Spot stock
Customize
Factory direct sale
7 days delivery
| 6060 Aluminum Sheet |
6060 aluminum alloy is a common duralumin-aluminum-magnesium-silicon alloy. American deformed aluminum and aluminum alloy. It is a kind of non-ferrous metal structural material used in industry. It has been used in the automobile, machinery manufacturing, shipbuilding and chemical industries.
With the development of automobile lightweight, 6060 aluminum sheet has been used in automobile doors and other parts.
6060 Aluminum Sheet Material Chemical Composition
| Si | Cu | Mg | Zn | Mn | Ti | Fe | Cr |
| 0.30-0.60 | ≤0.10 | 0.35-0.60 | ≤0.15 | ≤0.10 | ≤0.10 | 0.10-0.30 | ≤0.05 |
6060 Aluminum Plate Mechanical Properties
| Tensile strength σb (MPa) | ≥190 |
| Elongation δ5(%) | ≥8 |
Specimen Size: all wall thickness
Note: longitudinal mechanical properties of tubes at room temperature
6060 Aluminum Sheet Technical Parameters
| Typical alloy | 6060 aluminum plate |
| Material State | F、T4、T451、T6、T651、H112 |
| Thickness | 0.3mm-500mm |
| Width | 100mm-2800mm |
| Length | 500mm-16000mm |
| Typical products | Car doors, ships |
6060 Aluminum Sheet Market Applications
The 606 aluminum sheet is mainly used in automotive doors, trucks, tower buildings, ships and other buildings requiring strength, weldability and corrosion resistance, camera lenses, couplers, electronic accessories and joints, brake pistons, valves and valve parts.
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2. Do you have any certificates ?
Our products passed inspection of SGS, ISO Quality is priority!Every worker keeps the QC from the very beginning to the very end,Quality control department especially responsible for quality checking in each process.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
