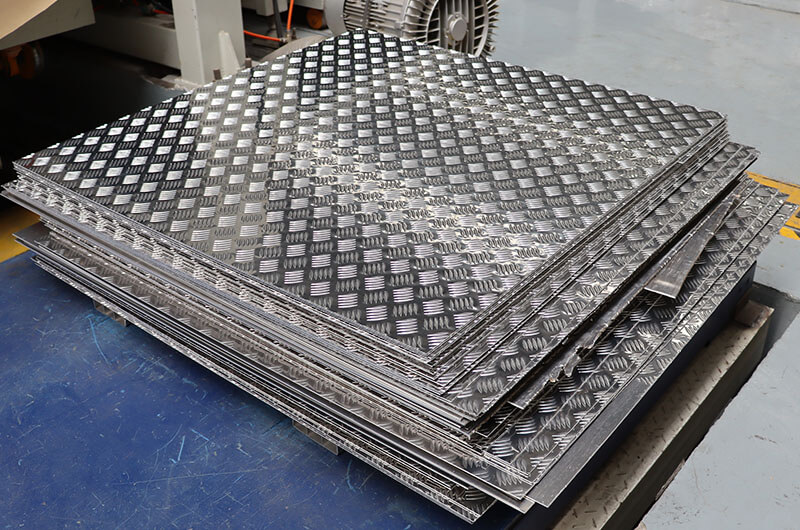

The 5-bar aluminum checkered tread plate is one of the most common types of patterned aluminum sheets. With its excellent anti-slip performance, it is widely trusted by users. Due to its resemblance to willow leaves, this type of tread plate is also referred to as a willow-embossed pattern plate. The 5052 aluminum checkered tread plate offers notable anti-slip capability, strong corrosion resistance, and reliable rust prevention, making it ideal for environments prone to moisture and corrosion, such as cold storage floors and ship decks.
The 5052 H114 aluminum sheet is a highly versatile aluminum alloy widely used across many industries due to its excellent physical and mechanical properties. As part of the aluminum-magnesium alloy family, 5052 contains magnesium (Mg) as its primary alloying element. The H114 temper indicates that the material has undergone work-hardening and stabilization, resulting in enhanced strength and corrosion resistance.
5052 H114 aluminum sheets are commonly used in applications that require both good flatness and adequate load-bearing capacity. They are frequently produced in treaded or patterned form for use in cold storage facilities and ship flooring.
Features of 5052 H114 Aluminum Sheet Plate
» Outstanding corrosion resistance: The addition of magnesium provides excellent resistance to oxidation, making it suitable for humid and corrosive environments.
» Good formability: The sheet is easy to fabricate through bending, stamping, and other forming methods.
» Moderate strength: Although not the strongest aluminum alloy, 5052 offers a balanced strength level that meets most engineering requirements.
» Excellent weldability: GNEE's 5052 H114 aluminum plate supports a wide range of welding processes and is suitable for manufacturing structural components.
Applications of 5052 H114 Aluminum Sheet Plate
◆ Construction industry: Used for decorative building elements such as exterior walls, ceilings, and flooring.
◆ Household appliances: Ideal for appliance housings, including refrigerators and washing machines.
◆ Transportation: Used in vehicle interior trim, dashboards, and other related components.
◆ Shipbuilding: Suitable for ship hulls, decks, cabins, and water tanks.
◆ Electronic equipment: Used to manufacture housings for electronic products.
◆ Furniture manufacturing: Applied in panels, sideboards, and other furniture components.
◆ Hardware products: Used for items such as door handles, cabinet handles, and other hardware fittings.
Specifications of 5052 5-Bar Aluminum Tread Checkered Plate for Cold Storage and Ship Flooring
| Alloy | 5052 5-bar aluminum tread checkered plate |
|---|---|
| Temper | H32, H114 |
| Thickness | 0.8 – 8.0 mm |
| Width | 100 – 1850 mm |
| Length | 500 – 16000 mm |
| Surface | Bright finish, Mill finish |
| Pattern Options | 1-bar (Diamond/Pointer), 2-bar, 3-bar, big/small 5-bar |
| Standards | GB/T 3880, EN 14286, EN 485, ASTM B209, or customized based on customer requirements |
Advantages of 5052 5-Bar Aluminum Tread Checkered Plate for Cold Storage and Marine Applications
Superior Corrosion Resistance: Thanks to its magnesium content, 5052 aluminum is highly resistant to seawater and humid environments, making it ideal for marine and coastal conditions.
High Strength: Among aluminum alloys, 5052 is known for its medium-high strength, ensuring stability even in thinner gauges.
Excellent Anti-Slip Properties: The raised 5-bar pattern provides enhanced traction, making it suitable for floors, ramps, and platforms, such as cold storage facilities and vehicle compartments.
Good Formability: The plate can be easily processed by cutting, bending, or stamping to suit various designs and dimensions required for different applications.
Application of 5052 5-Bar Aluminum Tread Checkered Plate in Cold Storage and Ship Flooring
Apart from cold storage floors and ship deck compartments, the 5052 5-bar aluminum tread plate is also widely used in applications requiring anti-slip surfaces, such as walkways, stair treads, industrial platforms, and loading areas. Different applications may require specific plate thicknesses, sizes, or pattern types. Therefore, selecting and processing the checkered tread plate should be based on operational needs.
GNEE offers a full range of 5052 5-bar aluminum checkered plates with customizable specifications to meet varied application requirements.
