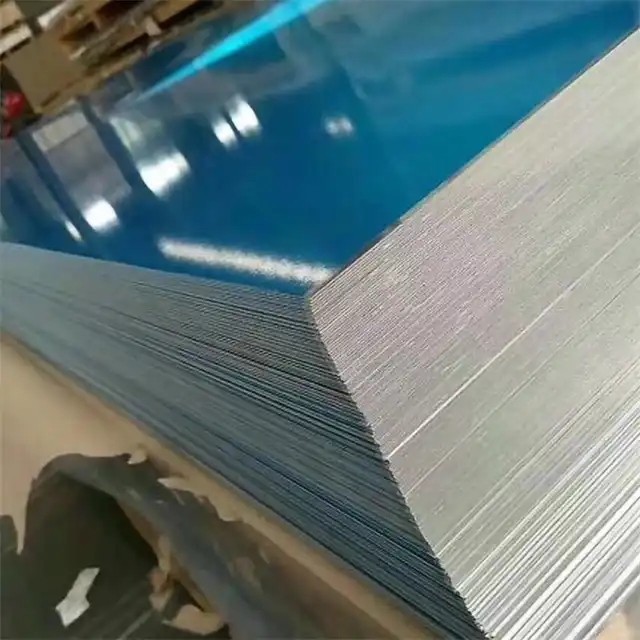

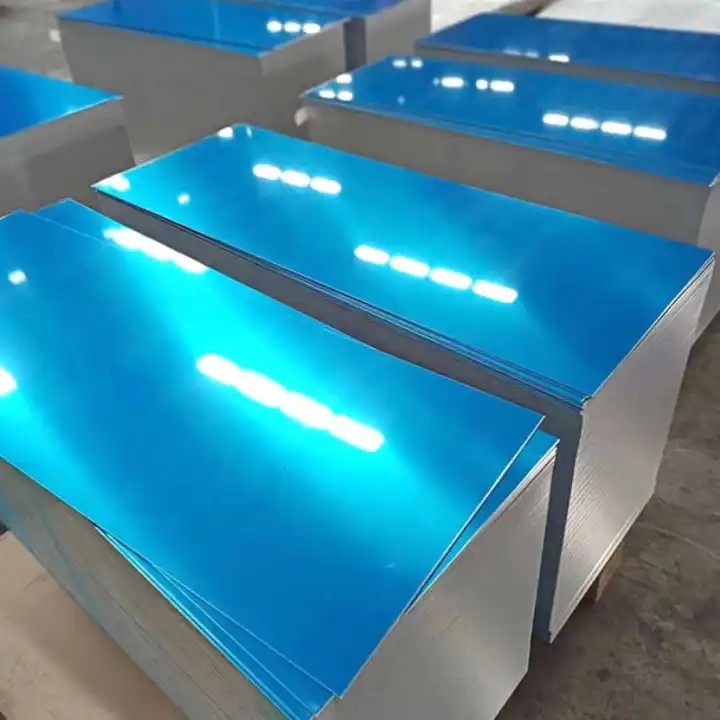

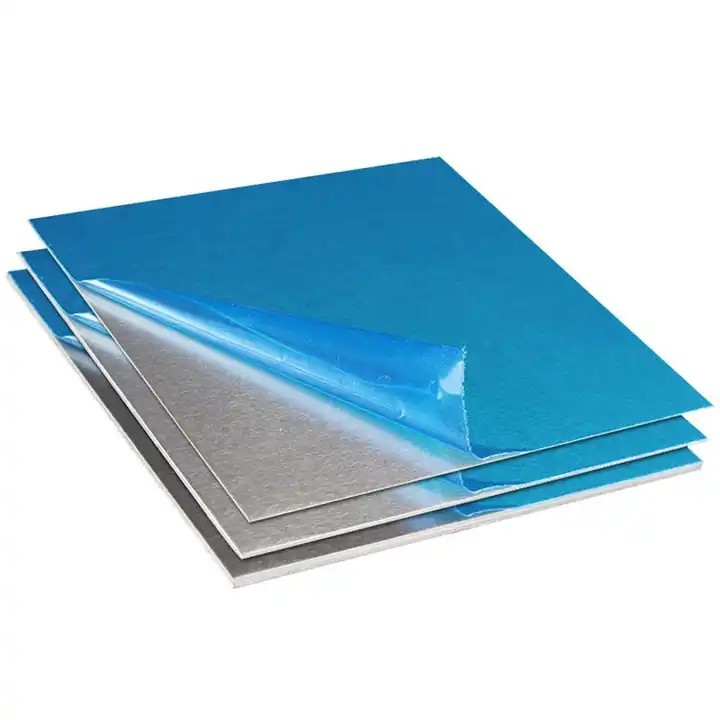

Aluminium 6061 Sheets
Customer service is online. Enter the chat to get the latest quotation.
Spot stock
Customize
Factory direct sale
7 days delivery
| Aluminium 6061 Sheets |
Instruction
Aluminum 6061 is an extremely versatile heat treatable aluminum alloy due to its content of silicon and magnesium.6061 has a wide range of mechanical and corrosion resistance properties as well as having most of the good qualities of aluminum.
6061 is used in a many applications from aircraft structures, yacht construction,truck bodies, bicycle frames to screw machine parts.
Products Description
Aluminium 6061 Sheets Specification
Temper: 6061 –T6, T651, T6511
Thickness: 0.5.0mm--500mm
With: 500mm--2000mm
Length: 1000mm--3000mm
Surface: Mill finish, Bright finish, paper interleaved, one side film, both sides film.
Aluminium 6061 Sheet & Plates Equivalent Grades :
| UNS | WNR | EN | DIN | ISO | BS (OLD) | USA |
| A96061 | 3.3211 | AW-AlMg1SiCu EN AW-6061 |
AlMgSiCu | AlMg1SiCu | HE20 | AA6061 |
Chemical Composition Of Aluminium Alloy 6061 Sheets & Plates :
| Manganese (Mn) | Silicon (Si) | Chromium (Cr) | Copper (Cu) | Iron (Fe) | Zinc (Zn) | Aluminum (Al) | Magnesium (Mg) | Titanium (Ti) | Other (Oth) Each/Total |
|---|---|---|---|---|---|---|---|---|---|
| 0.15 | 0.4-0.8 | 0.15-0.35 | 0.15-0.4 | 0.7 | 0.25 | Remainder | 0.8-1.2 | 0.15 | 0.005/0.15 |
Mechanical Properties Of Aluminium Alloy 6061 Sheets & Plates:
| Tensile Strength (PSI) | Yield Strength (PSI) | Shear Strength (PSI) | Elongation In 2″ | Brinell Hardness |
|---|---|---|---|---|
| 45,000 | 40,000 | 31,000 | 12 | 95 |
Features
Best in class strength,
Dimensional stability,
Good anodization response
Applications
Aircraft
Structure Screw Machine Products
Housings,
Hydraulic Parts
Automotive
marineindustries
Renewable Energy
Mass Transportation
Disclaimer
Every effort is made to ensure that technical specifications are accurate. However, technical specifications included herein should be used as a guideline only. All specifications are subject to change without notice.
