ASTM B241 seamless aluminum pipe is manufactured through a hot extrusion process using solid aluminum billets. The billet is heated and forced through an extrusion press utilizing a die and piercing mandrel system. This creates a hollow pipe without any welded joints. After extrusion, the pipe undergoes stretch straightening, heat treatment, cutting, surface finishing, and rigorous quality inspection to ensure it meets strict ASTM B241 dimensional and mechanical requirements.
What is ASTM B241 6061 Seamless Aluminum Pipe?
To understand the manufacturing process, we must first define the standard and the product structure.
What Is ASTM B241?
ASTM B241 is the standard specification for aluminum and aluminum-alloy seamless pipe and seamless extruded tube. It dictates the chemical composition, dimensional tolerances, mechanical properties, and testing requirements for pipes produced via the seamless extrusion method. It is the go-to standard for structural and pressure applications.
What Is Seamless Aluminum Pipe?
A seamless aluminum pipe is formed as a single, continuous piece of metal. It contains no longitudinal weld seams. Because there is no weld zone to weaken the structure, seamless pipe offers significantly higher pressure resistance and zero risk of weld-seam splitting.
| Type | Manufacturing Method | Weld Seam |
| Seamless Pipe | Hot Extrusion over Mandrel | No |
| Welded Pipe | Rolling sheet + Welding | Yes |
Raw Materials Used in 5052 & 3003 Aluminum Billet Production
The manufacturing process begins with high-purity aluminum logs, known as billets. The alloy grade selected determines the pipe's final application.
| Alloy | Typical Applications |
| 1100 | Chemical processing, electrical conductors |
| 3003 | HVAC systems, general industrial routing |
| 5052 | Marine environments, corrosion-resistant lines |
| 5083 | Shipbuilding, cryogenic equipment |
| 6061 | High-stress structural applications, hydraulics |
| 6063 | Architectural frameworks, decorative structures |
The Hot Extrusion Process for 1100 & 6061 Seamless Aluminum Tube
This is the core manufacturing phase where the solid metal is transformed into a hollow tube.
Billet Preparation and Inspection
We select solid aluminum billets that strictly match the required ASTM chemical composition. The billet's diameter is chosen based on the extrusion press capacity and the target pipe size. The surface must be clean and free of deep scratches.
Billet Heating
Aluminum cannot be extruded cold at these dimensions. The solid billet is loaded into an induction or gas furnace and heated to between 400°C and 500°C. At this temperature range, the aluminum does not melt but reaches a highly plastic, dough-like state. This reduces the resistance when it passes through the die.
Hot Extrusion Process
The heated billet is transferred to the extrusion press. A hydraulic ram applies immense pressure (often thousands of tons) to force the plasticized aluminum through a steel die. Unlike standard structural profiles, seamless pipe requires a specific tooling setup to form the hollow center.
Mandrel Forming Process
To create a true seamless pipe, a piercing mandrel is used. The mandrel acts as a solid rod positioned in the center of the extrusion die. As the hydraulic ram pushes the aluminum, the metal flows around the mandrel and through the outer die simultaneously. The outer die dictates the Outside Diameter (OD), while the mandrel dictates the Inside Diameter (ID). Because the metal is never split and rejoined (as in a porthole die used for structural tubes), the resulting pipe has absolutely no weld seams.
Cooling Process
As the pipe exits the press, it is extremely hot. Depending on the alloy, it undergoes either air cooling or rapid water quenching. Proper cooling locks the metallurgical grain structure into place and prevents the pipe from warping.
Stretch Straightening
Extruded pipes naturally curve as they cool. They are transferred to a stretch straightener, where mechanical jaws grip both ends and pull the pipe slightly past its yield point. This straightens the pipe perfectly and relieves internal manufacturing stress.
Heat Treatment for 6061-T6 and Other Tempers
Depending on the required temper (such as T6 for 6061), the pipe may undergo artificial aging in an aging furnace.
- O Temper: Fully annealed for maximum softness.
- H112: Strain hardened from the extrusion process, no extra heat treatment.
- T6: Solution heat-treated and artificially aged for maximum structural strength.
Cutting and Finishing

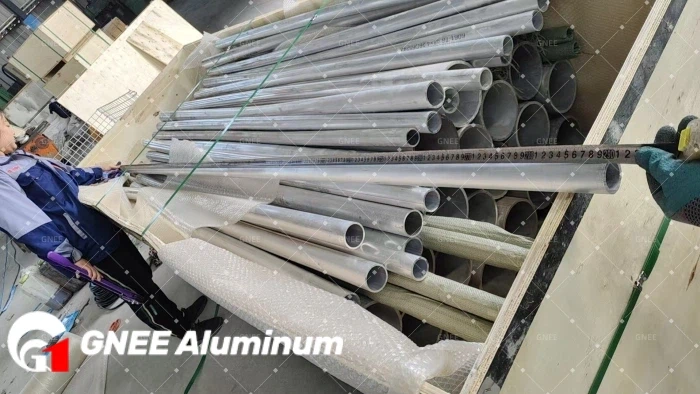

The continuous length of pipe is cut to the customer's specified dimensions (typically 6 meters) using precision carbide saws. The ends are deburred to remove sharp edges.
Are you looking for a reliable custom seamless aluminum pipe supplier? We manufacture ASTM B241 pipes in exact lengths and specific wall thicknesses tailored to your engineering drawings. Contact our sales team today to get a direct factory quote and current lead times.
Main Equipment for 5083 Seamless Extruded Pipe Production
High-quality seamless pipe requires massive industrial machinery.
| Equipment | Function |
| Extrusion Press | Applies hydraulic force to push metal through the die |
| Heating Furnace | Brings billet to plastic deformation temperature |
| Piercing Mandrel System | Forms the internal hollow section without welding |
| Stretch Straightener | Aligns the pipe and removes internal stress |
| Precision Saw | Cuts pipes to required commercial lengths |
| Aging Furnace | Bakes the pipe at controlled temperatures to increase hardness |
Typical Processing Temperatures for Aluminum Pipe
Temperature control is the most critical variable in the factory.
| Process | Temperature Range |
| Billet Heating | 400 - 500°C |
| Extrusion Exit Temperature | 480 - 550°C |
| Annealing (O Temper) | 300 - 410°C |
| Artificial Aging (T6 Temper) | 160 - 200°C |
Why Choose 6063 Seamless Aluminum Tubing Over Welded?
No Weld Defects
Welded pipes have a longitudinal seam that can contain micro-porosity. Seamless pipe completely eliminates this risk.
Higher Pressure Resistance
Without a seam, the pipe can handle significantly higher internal fluid or gas pressure before bursting.
Better Corrosion Resistance
Weld zones often have slightly different metallurgical structures than the rest of the pipe, creating a target for galvanic corrosion. Seamless pipes corrode uniformly, lasting much longer in harsh environments.
Industry Case Study: Solving Hydraulic Failures in Marine Engineering
A shipyard in Singapore was building offshore service vessels and using welded 6061 aluminum pipes for their low-pressure hydraulic return lines. However, engine vibration combined with continuous fluid pressure caused the weld seams to split on multiple vessels within two years of operation.
They contacted us for a material review. We supplied them with ASTM B241 5052 seamless aluminum pipe. The 5052 alloy provided superior saltwater corrosion resistance, while the seamless extrusion process completely eliminated the weld weak point. The new pipes were installed across their fleet. After three years of operation under intense marine vibration, the shipyard reported zero pipeline failures, proving the mechanical superiority of true seamless extrusion.
Common Manufacturing Defects in 6061-T6 Aluminum Pipe and Solutions
Quality control is about preventing these typical extrusion issues.
| Defect | Cause | Factory Solution |
| Surface Cracks | Extrusion speed or temperature too high | Optimize press speed and monitor exit temperature |
| Wall Thickness Variation | Mandrel or die misalignment | Use precision CNC machined tooling |
| Pipe Bending | Uneven cooling after exiting press | Ensure symmetrical air/water cooling, followed by stretch straightening |
| Surface Scratches | Contact with dirty handling equipment | Use graphite or Kevlar run-out tables |
| Internal Voids | Gas trapped in poor quality billet | Source high-quality, ultrasonically tested billets |
Surface Finish Options After Manufacturing
Once extruded, ASTM B241 pipes can be finished to suit their final environment.
| Surface Finish | Purpose |
| Mill Finish | Standard industrial use, natural appearance |
| Polished | Sanitary lines, high-end decorative structures |
| Anodized | Enhanced corrosion resistance, colored appearance |
| Brushed | Architectural details, fingerprint resistance |
| Powder Coated | Exterior applications, extreme weather resistance |
ASTM B241 Inspection and Testing Requirements
Before shipping, our seamless pipes must pass rigorous testing.
| Inspection Item | Testing Standard / Method |
| Chemical Composition | Optical Emission Spectroscopy (OES) |
| Tensile & Yield Strength | ASTM E8 Universal Testing Machine |
| Dimensional Tolerance | Calipers, Micrometers (Per ASTM B241) |
| Eddy Current Test | Detects microscopic surface cracks |
| Ultrasonic Test | Detects internal defects within thick walls |
Applications of ASTM B241 Extruded Pipe
Marine Engineering: Fuel lines, hydraulic systems, and railings.
HVAC Systems: High-pressure refrigerant lines.
Chemical Processing: Transporting corrosive liquids safely.
Aerospace: Lightweight fluid management systems.
Electrical Conductors: High-voltage tubular busbars.
