Yes, 1100 aluminum pipe is highly suitable for bending due to its excellent ductility, low hardness, and high elongation properties. As a commercially pure aluminum alloy (minimum 99% pure), 1100 aluminum offers outstanding formability without cracking. It has very low springback, making it the ideal choice for applications requiring tight-radius bending, complex tube forming, and lightweight fabrication in HVAC, electrical, and decorative industries.
What is 1100 Aluminum Pipe?
To understand its bending performance, we must look at its basic material properties.
1100 Aluminum Alloy Overview
The 1100 grade belongs to the 1xxx series of commercial pure aluminum. It contains at least 99.0% aluminum. Because it lacks hardening alloying elements like copper or magnesium, it is a non-heat-treatable alloy. Its strength is achieved only through cold working. It provides massive elongation, making it one of the most workable metals available.

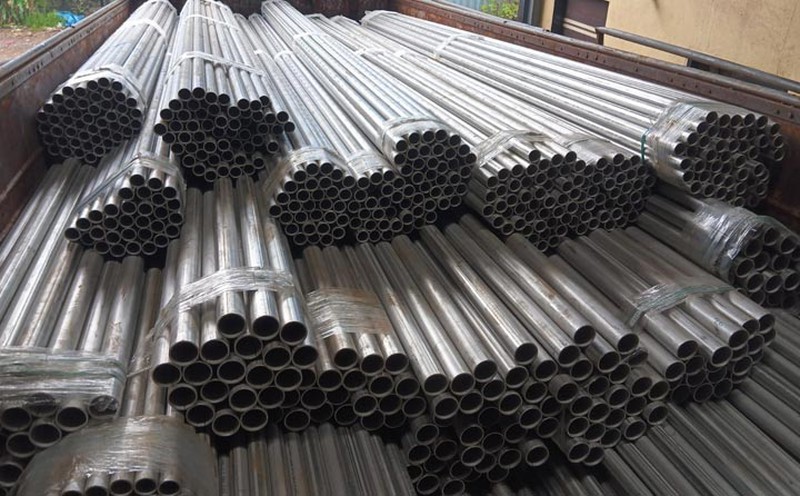

1100 Aluminum Pipe Types
We supply various types of 1100 pipe for different bending requirements, including:
- Seamless aluminum pipe
- Extruded aluminum tube
- Drawn aluminum tube
- Round aluminum pipe
- Thin-wall aluminum tubing
Why 1100 Extruded Aluminum Pipe is Highly Suitable for Bending
When fabricators ask for a bendable aluminum pipe, 1100 is often the first recommendation. Here is why.
Excellent Ductility
With high elongation rates, 1100 aluminum pipe can stretch significantly before failing. This means during the outside stretch of a bend, the material yields without micro-cracking. It easily handles cold bending.
Low Hardness
Because the material is relatively soft, the force required to bend it is low. More importantly, low hardness results in minimal springback (rebound). Once bent to a specific angle, 1100 pipe holds its shape accurately.
High Formability
It is highly compatible with various fabrication machines. Whether you use rotary bending, mandrel bending, or automated CNC tube bending, 1100 aluminum forms smoothly without excessive tooling wear.
Good Surface Quality After Bending
Harder alloys often show "orange peel" textures or surface fractures after severe bending. 1100 aluminum maintains a smooth, clean surface finish on the outside of the bend, reducing the risk of wrinkling on the inside.
1100 Aluminum Tubing Bending Properties
The physical properties dictate how the material behaves under bending stress.
| Property | Typical Value | Influence on Bending |
| Tensile Strength | 90 - 110 MPa | Requires low bending force, easy forming |
| Yield Strength | 35 MPa Min | Low resistance to permanent deformation |
| Elongation | 15 - 30% | High ductility prevents cracking on outside radius |
| Hardness | ~23 HB | Very low springback, holds shape well |
| Density | 2.71 g/cm3 | Lightweight and easy to handle during fabrication |
| Modulus of Elasticity | 69 GPa | Lower rebound after exiting the bending die |
Recommended Bend Radius for 1100 Aluminum Tube
The bend radius depends heavily on the pipe's outside diameter (OD) and wall thickness. Bending too tight will cause flattening or tearing. Below is the general guideline for 1100 aluminum.
| Pipe Wall Thickness | Recommended Minimum Bend Radius |
| Thin Wall (<2 mm) | 1.5D - 2D |
| Medium Wall (2-5 mm) | 2D - 3D |
| Thick Wall (>5 mm) | 3D - 4D |
Note: "D" represents the Outside Diameter of the pipe. The smaller the radius, the higher the forming difficulty.
Are you unsure about the minimum bend radius for your specific project? Send us your drawing and pipe dimensions. Our engineering team provides free bending calculations and tooling advice.
Contact us today for 1100 aluminum pipe bending service support
Which Temper of 1100 Aluminum Pipe is Best for Bending?
The temper (heat treatment state) drastically changes bendability.
1100-O (Annealed)
This is the softest state. It offers the absolute best bending performance and the lowest risk of cracking. It is highly recommended for tight-radius bends and complex forming.
1100-H14 (Strain Hardened)
This temper is half-hard. It offers higher structural strength than the O temper but has moderate formability. It is suitable for large-radius bends where some rigidity is required.
1100-H112 (As Fabricated)
Commonly used for structural extrusion. It provides a balance between strength and machinability. It can be bent but requires slightly larger bend radii than the O temper.
1100 Aluminum Round Pipe Bending Methods
Depending on the application, different machines are used to bend this material.
Rotary Draw Bending
Used for precision bending and small radii. The pipe is clamped to a rotating die. 1100 aluminum performs exceptionally well here due to its low springback.
Mandrel Bending
A solid or flexible mandrel is inserted inside the pipe during bending. This is critical when bending thin-wall 1100 aluminum tubes to prevent the pipe from collapsing or wrinkling on the inside radius.
Roll Bending
Used to create large sweeping curves for architectural structures. Three adjustable rollers pass the pipe back and forth. 1100 pipe easily takes these gradual curves without stress fractures.
Compression Bending
A simple method where a roller presses the pipe around a stationary die. Suitable for simple industrial bends where cosmetic appearance is not strictly required.
Common Defects When Bending Thin-Wall 1100 Aluminum Tube
Even with highly bendable material, incorrect tooling can cause issues.
| Defect | Cause | Solution |
| Cracking | Bend radius is too small | Increase bend radius or switch to O temper |
| Wrinkling | Thin wall collapse on inside | Use a proper internal mandrel |
| Flattening | Excessive external pressure | Optimize wiper die and bending speed |
| Springback | Incorrect angle compensation | Adjust machine to over-bend slightly |
| Surface Scratch | Poor tooling lubrication | Use smooth dies and aluminum-safe lubricants |
1100 vs Other Aluminum Alloys for Bending
Choosing the right alloy is critical. Here is how 1100 compares to others in tube forming.
| Alloy | Bendability | Strength | Crack Resistance | Typical Application |
| 1100 | Excellent | Low | Excellent | Decorative, HVAC, Electrical |
| 3003 | Very Good | Medium | Very Good | General fabrication, fluid lines |
| 5052 | Good | High | Good | Marine structures, fuel lines |
| 6061-T6 | Poor | Very High | Lower | Rigid structural parts, scaffolding |
Conclusion: If your primary operation is severe bending and strength is secondary, 1100 is superior to 3003, 5052, and 6061.
Can 1100 Aluminum Seamless Pipe Be Bent Without Heat?
Yes. In fact, 1100 aluminum pipe is almost always cold-bent. Its natural softness and high ductility mean that thin-wall and medium-wall tubes require absolutely no heat for forming. Applying heat is generally unnecessary and can melt or deform the material if not carefully controlled. Only massive, thick-walled aluminum pipes might require slight localized heating, but cold bending is the standard industry practice.
Is Annealing Necessary for 1100 Aluminum Tubing?
If you purchase 1100-O aluminum tubing, annealing is not necessary because the material is already fully annealed and in its softest state. If you are using 1100-H14 or H112 and need to perform a very sharp, complex bend that is causing the material to stress, you can locally anneal the bend area with a torch. This relieves the internal stress and reduces cracking risks.
Applications Requiring Bent 1100 Pure Aluminum Pipe
The formability of this pipe makes it a staple in several industries.
HVAC Systems
Air conditioning bent pipes, custom refrigeration coils, and heat exchange loops.
Electrical Industry
Conductive tubular busbars and rigid conduits for electrical wiring that require complex routing.
Decorative Structures
Architectural framing, custom lighting fixtures, and interior design elements.
Food Equipment
Sanitary fluid systems where bent pure aluminum prevents contamination and allows easy cleaning.
Automotive Trim
Lightweight cosmetic tubes and fluid transfer lines in vehicles.
Fabrication Tips for Bending 1100 Aluminum Pipe
- Use Lubrication: Always use an aluminum-specific bending lubricant. 1100 is soft and can easily gall or stick to steel dies, causing surface scratches.
- Avoid Extreme Radii: Even though it is ductile, bending below a 1.5D radius without specialized mandrel equipment will cause flattening.
- Use a Mandrel: For thin-wall tubes, an internal mandrel is mandatory to prevent wrinkling.
- Control Bending Speed: Keep the bending speed steady and moderate to allow the material to stretch evenly.
Chemical Composition of 1100 Aluminum Alloy Pipe
Purity ensures the material behaves predictably during fabrication.
| Element | Content (%) |
| Aluminum (Al) | 99.0 Min |
| Silicon + Iron (Si + Fe) | 1.0 Max |
| Copper (Cu) | 0.05 - 0.20 |
| Zinc (Zn) | 0.10 Max |
| Manganese (Mn) | 0.05 Max |
| Others Total | 0.15 Max |
Available Sizes of 1100 Aluminum Pipe for Bending
We supply 1100 pipe ready for forming in various dimensions.
| Outside Diameter | Wall Thickness | Bendability Rating |
| 6 mm - 25 mm | 1 mm - 2 mm | Excellent (Cold bending) |
| 25 mm - 80 mm | 2 mm - 5 mm | Very Good (Standard rotary) |
| 80 mm - 150 mm | 3 mm - 10 mm | Good (Requires large equipment) |
| > 150 mm | > 5 mm | Requires advanced tooling |
1100 aluminum pipe is undoubtedly one of the best aluminum alloys available for bending and tube forming operations. Its excellent ductility, low hardness, and high crack resistance make it ideal for tight-radius forming in cold states. Whether you are building HVAC cooling loops, decorative frames, or electrical busbars, selecting 1100 tubing ensures smooth fabrication with minimal scrap rates.
