What Makes 5005-H14 Different Under the Laser

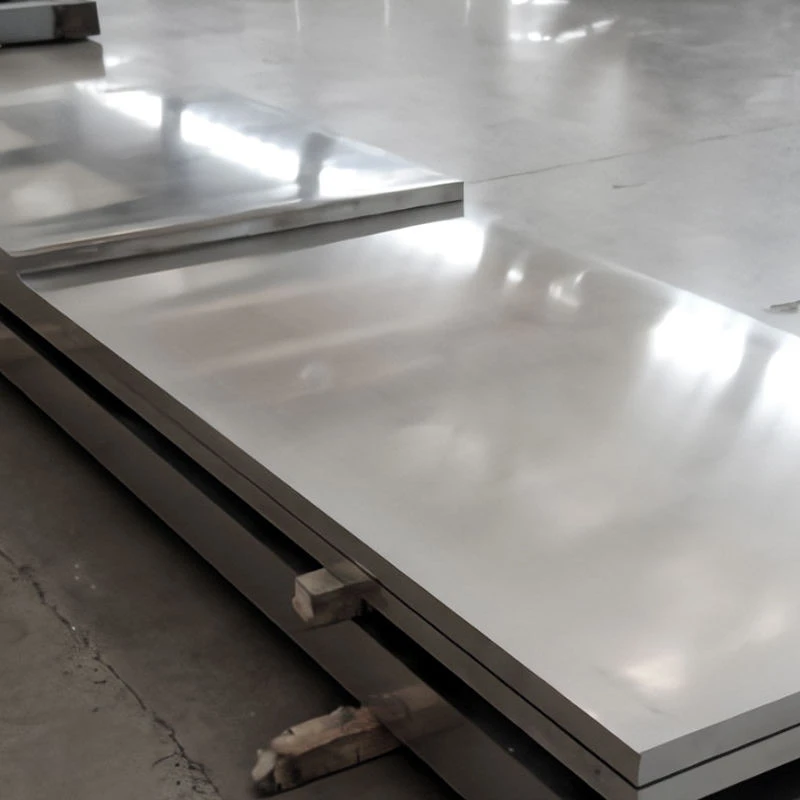

5005 is an aluminium magnesium alloy with magnesium in the range of 0.50 to 1.10 percent and a density of about 2.70 g per cubic centimetre. In the H14 temper the plate is strain hardened to a quarter hard condition, with typical tensile strength in the 145 to 185 MPa band and proof stress of at least 120 MPa. It is the standard alloy for architectural panels and anodised sheet because it takes a clean anodic film and resists weathering well.
Under a fibre laser, 5005-H14 poses three specific problems. First, the surface reflects a large part of the 1.07 micron beam at low temperature, so piercing is unstable. Second, thermal conductivity is roughly 200 W per metre Kelvin, so heat spreads away from the kerf and the cut needs high power density. Third, magnesium is a volatile element, so the melt pool gives off fine oxide fume that can foul the protective lens. The heat affected zone and the dimensional accuracy of the part are won or lost on how those three issues are handled.
Controlling the Heat Affected Zone
The heat affected zone in a fibre laser cut of 1 to 6 mm 5005 plate is typically 0.05 mm to 0.30 mm wide when the process is set correctly; a poorly set cut on the same plate can exceed 0.8 mm. Four levers control it:
Heat input per unit length. Raise speed and lower average power together, so the energy deposited per millimetre of cut falls. Deep piercing with high average power is the single largest source of local overheating.
Pulse or modulated output. Modulating the beam at a few kilohertz lets the melt pool partly solidify between pulses, which limits lateral heat diffusion without slowing the feed rate.
Focus and spot size. A tighter spot raises power density at the surface, so the plate reaches melting temperature faster and the surrounding metal absorbs less heat.
Piercing position and lead in. Pierce outside the finished contour and lead in with an arc, so the unavoidable hole is cut off as scrap instead of sitting on a visible edge.
Because H14 is a work hardened temper rather than a heat treated one, the HAZ is not softened by precipitation effects, but it does recover slightly and can lose a little strength at the cut face. Grinding or anodising after cutting removes that thin layer when the edge is structurally critical.
Cutting Gas, Focus and Optics
Assist gas selection changes both the kerf and the HAZ. High pressure nitrogen at 12 to 20 bar gives a clean, oxide free edge with a narrow HAZ on 5005 plate from 2 mm to 6 mm, which is the right choice when the part will be anodised or coated. Oxygen produces a faster cut and can help on thicker sections, but the exothermic reaction adds heat and leaves an oxidised edge that must be removed before anodising. Compressed air sits between the two and is a reasonable compromise for mild steel style fabrication work, though edge quality on aluminium is less predictable.
Nozzle diameter is normally 1.2 mm to 2.0 mm with a standoff of 0.8 mm to 1.2 mm. Focus is set at the surface or slightly below it for nitrogen cutting of thin plate. The collimation and focusing optics must be rated for high reflection, and a protective window with a clean purge keeps magnesium oxide fume away from the lens. A contaminated window changes the focus and widens the HAZ within hours, so window condition should be treated as a process variable, not a maintenance afterthought.
Speed, Power and Thickness: Typical Starting Parameters
The values below are typical starting points for a nitrogen assisted fibre laser on 5005-H14 plate; kerf and speed are tuned against the actual nozzle and material batch.
| Thickness | Laser power | Cutting speed | Nitrogen pressure | Typical kerf |
| 2 mm | 3 kW | 7 to 9 m per minute | 14 bar | 0.15 to 0.25 mm |
| 3 mm | 4 kW | 5 to 7 m per minute | 16 bar | 0.20 to 0.30 mm |
| 5 mm | 6 kW | 3 to 4 m per minute | 18 bar | 0.30 to 0.45 mm |
| 6 mm | 6 kW | 2.5 to 3.5 m per minute | 20 bar | 0.35 to 0.50 mm |
Focus position of minus 0.5 mm to plus 1.0 mm relative to the top surface is a normal window for these thicknesses. Any sudden fall in speed for the same power is a sign that the nozzle is worn or the window is dirty, not that the material has changed.
Cutting Accuracy, Dross and Post Processing
Modern fibre machines hold positioning accuracy of about plus or minus 0.05 mm and repeatability of about plus or minus 0.03 mm, so the practical limits on part accuracy come from the process rather than the drives. The usual defects on 5005-H14 are:
Dross on the underside, caused by insufficient gas pressure or too low a speed for the thickness.
Edge taper, which increases with thickness and with a focus set too high above the surface.
Vertical striations, which follow from an unstable melt pool and usually point to power or duty cycle settings.
Heat tint along the cut face, which appears as a light grey band and is removed by mechanical finishing.
Deburring, edge rounding and light surface finishing recover tight tolerances after cutting and give a clean face for anodising. If the parts will be anodised, plan on removing roughly 0.05 mm to 0.10 mm from the cut face by brushing or vibratory finishing, because the laser edge carries an oxide film that anodises to a different shade than the rolled surface. Clamping the plate flat on a level bed, using tabs to hold small parts and cutting contours in a sequence that lets heat dissipate between passes all reduce distortion of thin panels.
Frequently Asked Questions
Q: Can a fibre laser cut 5005-H14 without a heat affected zone?
No cutting process removes the HAZ completely, because the metal at the kerf edge must melt. Correct parameters hold the zone to roughly 0.05 mm to 0.30 mm, which is invisible on most architectural and fabrication work.
Q: Is nitrogen always better than oxygen for this alloy?
Nitrogen gives a narrower HAZ and an oxide free edge, which is preferred for anodised or coated parts. Oxygen is faster on thicker plate but leaves an oxide layer that must be removed, so it suits parts that will be painted or hidden.
Q: Why does piercing take so long on aluminium?
The reflective surface makes the first milliseconds inefficient, so machines ramp power or use a pulsed pierce. Drilling or punching a start hole is faster than a long pierce when many small parts are nested on one sheet.
Q: How do I know my parameters are drifting?
Track cut speed, kerf width and dross appearance for each thickness. A gradual loss of speed at constant power usually means the protective window or nozzle has degraded rather than a change in the plate.
Q: Does laser cutting affect the anodised finish of 5005?
The cut face carries a thin oxide layer and, in the HAZ, a slightly recovered microstructure, so it anodises to a slightly different shade than the rolled surface. Removing 0.05 mm to 0.10 mm by mechanical finishing brings the edge close to the base colour.
Q: What tolerance can be promised on a laser cut panel?
Machine positioning is about plus or minus 0.05 mm, but the achievable part tolerance depends on thickness, kerf and heat control. A working figure for 2 mm to 6 mm 5005-H14 plate is plus or minus 0.1 mm on contours and plus or minus 0.2 mm on hole diameters.
