5086 H111 material is a non-heat-treatable aluminum-magnesium alloy in a lightly strain-hardened condition. It is widely known for its excellent corrosion resistance, particularly in marine and industrial environments, as well as its superior weldability and moderate structural strength.
Compared with other tempers like H32 or H116, the H111 condition offers significantly better formability, making it the ideal choice for applications that require heavy bending, deep drawing, and general fabrication without the risk of material cracking.
Decoding 5086 H111 Aluminum
To fully understand how this material behaves in a workshop, engineers and procurement teams must break down its technical designation:
- 5086 Alloy: This is a 5xxx series marine-grade aluminum alloy. It contains less magnesium than 5083 but more than 5052, providing a perfect middle ground between high strength and excellent workability.
- Non-Heat-Treatable: Like all 5xxx series alloys, 5086 cannot be strengthened by thermal treatment. Its strength is achieved solely through cold working (strain hardening).
- H111 Temper: The "H11" indicates it is slightly strain-hardened. The "1" specifies that it has undergone a very limited amount of work hardening during the final forming processes (like stretching or leveling), but it remains highly ductile.
Summary: 5086 H111 is essentially a "semi-soft" aluminum alloy designed specifically for severe forming and complex welding applications.
Chemical Composition of 5086 Aluminum
The performance of the 5086 alloy is dictated by its carefully balanced chemical makeup.
| Element | Content (%) | Engineering Function |
| Magnesium (Mg) | 3.5 – 4.5 | Provides core strength and outstanding marine corrosion resistance. |
| Manganese (Mn) | 0.2 – 0.7 | Increases tensile strength and improves the internal grain structure. |
| Chromium (Cr) | 0.05 – 0.25 | Acts as an inhibitor against stress corrosion cracking. |
| Silicon + Iron (Si + Fe) | ≤ 0.5 | Kept low to prevent brittleness and ensure excellent weldability. |
| Zinc (Zn) | ≤ 0.25 | Strictly limited to protect the alloy's anti-corrosion properties. |
| Aluminum (Al) | Remainder | The base matrix. |
Mechanical Properties of 5086 H111
When evaluating 5086 H111 for fabrication, its elongation rate is its greatest asset. It allows for tight bending radii that harder tempers simply cannot achieve.
| Property | Typical Value |
| Tensile Strength (Ultimate) | ≈ 260 – 300 MPa (38,000 – 43,500 psi) |
| Yield Strength | ≈ 110 – 140 MPa (16,000 – 20,000 psi) |
| Elongation (in 50mm) | ≥ 12 – 20% (Highly dependent on thickness) |
| Hardness (Brinell) | ≈ 58 HB |
Engineering Note: 5086 H111 provides lower tensile and yield strength than the H32 or H116 tempers, but it offers far superior ductility. This is critical when manufacturing curved panels or cylindrical tanks.
Are you calculating the bending radius for a new tank design or vehicle panel? Contact our engineering team with your drawing, and we will verify if 5086 H111 is the right fit for your fabrication process.
5086 H111 vs Other Tempers (H32 and H116)
Selecting the correct temper is crucial. A common mistake in procurement is buying an H116 plate for a bending application, only to have the metal crack on the press brake. Here is the core comparison:
| Temper | Material Condition | Key Features | Best Use Cases |
| H111 | Lightly strain-hardened | Excellent formability, highly ductile. | Bending, tank forming, general fabrication. |
| H32 | Strain-hardened + quarter hard | Higher strength, decent workability. | Standard structural use, flat vehicle panels. |
| H116 | Strain-hardened (corrosion optimized) | Maximum resistance to saltwater exfoliation. | Heavy shipbuilding, offshore platforms. |
Summary: H111 is optimized for bending and forming, while H116 is optimized strictly for structural marine durability.
Applications of 5086 H111 Aluminum Material
Thanks to its balanced properties, 5086 H111 is extensively utilized in industries where metal needs to be heavily worked before final assembly:
- Vehicle Panels: Used for manufacturing curved dump truck bodies, specialized trailers, and railway carriage panels.
- Storage Tanks: Its high elongation makes it the standard material for rolling cylindrical road tankers and unpressurized chemical storage vessels.
- Marine Structures (Non-Critical): Perfect for interior boat cabins, consoles, and non-load-bearing bulkheads where complex shapes are required.
- Welded Assemblies: 5086 retains excellent joint strength after MIG/TIG welding, making it ideal for complex architectural frameworks.
- General Fabrication: Used widely in machine bases, structural brackets, and heavy-duty enclosures.
When to Choose 5086 H111 Aluminum
Make the right procurement decision by matching the material directly to your project needs:
Choose 5086 H111 if:
- Your production process requires severe CNC bending, rolling, deep drawing, or pressing.
- You require highly reliable weldability with minimal loss of strength in the heat-affected zone (HAZ).
- Moderate structural strength is sufficient for your design load.
- You are building road transport equipment or standard industrial tanks.
Do NOT choose 5086 H111 if:
- You are constructing primary ship hull structures below the waterline.
- The project involves long-term, direct seawater exposure (like offshore oil rigs).
- The end-user strictly demands classification society certification (ABS, DNV, LR) for marine exfoliation resistance (choose 5086 H116 instead).
Managing a complex BOM that requires different aluminum grades? Send us your material list today. GNEE specializes in consolidating mixed orders to help you save on overall procurement and shipping costs.

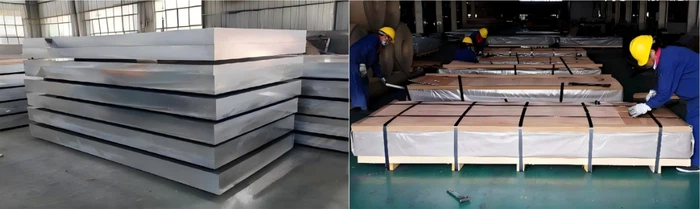

GNEE Supply Capability for 5086 Aluminum
Sourcing industrial aluminum requires a supplier capable of precise temper control and flexible logistics. As a professional aluminum manufacturer, GNEE, a leading Chinese supplier, supplies a full range of 5086 aluminum products tailored for both marine and industrial applications.
✔ Multi-Alloy & Flexible Ordering Options
- Available alloys: We carry a comprehensive range including 5086, 5083, 5052, and structural 6061.
- Temper options: H111 for forming, H32 for general structures, and H116/H321 for marine certification.
- Custom dimensions: We provide custom thicknesses, extreme widths, and precision cut-to-length services.
- Support for Mixed Orders: GNEE supports multi-grade and multi-specification orders in one single shipment container. You can combine 5086 H111 for tank fabrication with 5083 H116 for hull construction, drastically reducing your procurement costs and simplifying your global sourcing.

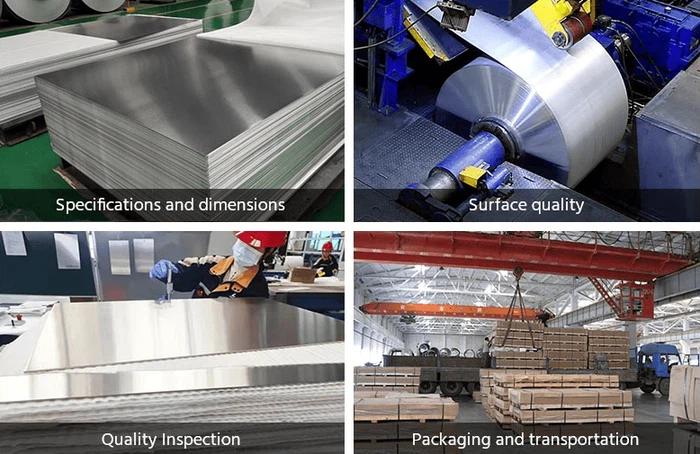

✔ Advanced Production Equipment
- Hot rolling lines: Ensuring a flawless internal grain structure without porosity.
- Precision leveling machines: Guaranteeing absolute flatness, which is essential for automated laser cutting and welding.
- Heat treatment systems: Strictly controlling the strain-hardening process to meet exact ASTM/EN mechanical property requirements.
- Ultrasonic testing (UT inspection): Ensuring zero internal delamination for thick plates.
✔ Strong Production Capacity
- Monthly output: 5,000+ tons of industrial aluminum.
- Fast delivery time: Standard production cycles are completed within 7–25 days.
- Stable supply: Acting as a reliable material backbone for large-scale fabrication projects worldwide.
Packaging & Delivery
Damage during ocean transit can ruin your production schedule. GNEE adopts heavy-duty, export-standard packaging to ensure safe delivery:
- Seaworthy wooden pallets: Fumigated and structurally reinforced to bear heavy metric payloads.
- Waterproof film + kraft paper: Each stack is fully wrapped to prevent oxidation and moisture damage from salty sea air.
- Edge protection: Hardened guards protect the plate edges from lifting slings and rough forklift handling.
- Customized export packaging: We can adapt packaging based on your specific unloading equipment or warehouse protocols.
Conclusion
5086 H111 aluminum is an incredibly versatile material that bridges the gap between high marine-grade corrosion resistance and exceptional workshop formability. Whether you are fabricating road tankers, complex architectural structures, or vehicle panels, choosing the H111 temper ensures your manufacturing process runs efficiently without material failure.
Ready to secure reliable 5086 H111 material for your next fabrication project? Send us your required specifications, thickness, and quantities today. Our technical sales team will review your needs and provide a competitive, comprehensive quotation within 24 hours.
