When engineers design fluid transfer systems for marine vessels or offshore platforms, they face two primary enemies: aggressive saltwater corrosion and weak weld joints under high vibration. You cannot afford a pipe failure in the middle of the ocean. This is where the 5086 aluminum tube comes in.
Unlike general-purpose alloys, 5086 is specifically alloyed with magnesium to survive harsh environments. At GNEE, we supply extruded and seamless 5086 aluminum pipes to shipyards and industrial contractors who need materials that pass rigorous marine certifications (ABS, DNV) and deliver reliable performance without the heavy weight of steel.
What is 5086 Aluminum Tubing?
Technically, 5086 is a high-strength, non-heat-treatable alloy belonging to the 5xxx series (Al-Mg). Its primary alloying element is magnesium (3.5% to 4.5%).
Because you cannot heat-treat 5086 to make it stronger, its strength is achieved through strain hardening and cold working. For piping and tubing applications, you will typically see it supplied in the O (annealed) or H111 temper. The H111 temper means the tube has undergone some work hardening during the extrusion process but less than the amount required for a standard H11 temper, providing an ideal balance of strength and bending formability.
5086 H111 Aluminum Chemical Composition
| Element | Mg | Mn | Cr | Fe | Si | Cu | Zn | Ti | Al |
|---|---|---|---|---|---|---|---|---|---|
| Content (%) | 3.5 – 4.5 | 0.2 – 0.7 | 0.05 – 0.25 | ≤ 0.50 | ≤ 0.40 | ≤ 0.10 | ≤ 0.25 | ≤ 0.15 | Remainder |
Key Properties of 5086 Extruded Aluminum Pipe
Engineers do not buy adjectives; they buy data. Here is why 5086 is specified over standard 6061 for marine tubing:
| Technical Property | Data / Characteristic | Why It Matters for Tubing |
| Corrosion Resistance | Exceptional (specifically against seawater) | Eliminates the need for protective coatings in splash zones. |
| Weldability | Outstanding (use ER5356 or ER5183 filler) | Retains near-full strength at the weld joint, unlike 6xxx alloys which weaken significantly when welded. |
| Tensile Strength (H111) | ~275 MPa (40,000 psi) | High pressure threshold for fluid and gas transfer lines. |
| Yield Strength (H111) | ~145 MPa (21,000 psi) | Resists permanent deformation under heavy structural loads. |
| Density | 2.66 g/cm³ | Significantly lighter than marine-grade stainless steel, improving vessel fuel efficiency. |

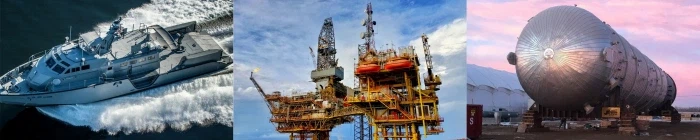

Top Applications of 5086 Marine Aluminum Tube
We don't just sell metal; we supply solutions for specific industrial challenges. 5086 aluminum piping is not for decorative indoor furniture. It is built for survival.
- Marine & Shipbuilding Pipe Systems
This is the primary home for 5086. It is used extensively for onboard piping systems, including fuel lines, desalination water transfer, deck railings, and mast structures. The alloy's ability to resist intergranular corrosion in salt-laden air makes it the standard for commercial vessels and luxury yachts.
Need DNV or ABS certified marine pipe? Request a quote from our technical team today.
- Military & Defense Tubing
Defense contractors utilize 5086 aluminum tubes in the construction of patrol boats, armored personnel carrier internal frames, and radar masts. The alloy absorbs shock and vibration effectively, maintaining structural integrity under extreme stress.
- Offshore & Industrial Structures
For oil rigs and offshore wind turbine platforms, 5086 seamless aluminum pipe is used for hydraulic lines and handrails. It withstands the constant pounding of waves and prevents the fast degradation that plagues standard steel.
- Transportation Tanker Pipes
In road tanker trailers carrying corrosive liquids or dry bulk, 5086 tubes are used for pneumatic discharge lines. The high strength-to-weight ratio allows fleet operators to maximize payload capacity.
5086 vs. 5052 vs. 5083 Aluminum Tube: Which Should You Specify?
In our experience supplying the market, buyers often confuse 5xxx series alloys. Making the wrong choice can lead to cracking during bending or structural failure under load. Here is the direct breakdown:
| Alloy Grade | Relative Strength | Marine Corrosion Resistance | Best Used For (Tubing Applications) |
| 5052 Tube | Medium | Good | Fuel lines, general bending, low-pressure systems. Budget-friendly. |
| 5086 Tube | High | Excellent | Structural marine pipes, welded assemblies, pressurized fluid transfer. |
| 5083 Tube | Very High | Excellent | Heavy-duty structural columns, extreme load-bearing applications. |
GNEE's Engineering Advice:
If your project requires tight, complex bending (like a small fuel line), go with 5052. If you are building heavy structural supports where maximum strength is the only goal, use 5083.
However, if you are seeking a material that combines exceptional weld strength, good formability, and excellent corrosion resistance in marine environments, then Alloy 5086 is undoubtedly your optimal choice for engineering material selection.
Why Choose Seamless 5086 Aluminum Pipe Over Other Options?
When routing high-pressure fluids, structural extruded tube (porthole extrusion) has a visible weld seam that can act as a failure point. For critical applications, we highly recommend seamless 5086 aluminum pipe extruded over a mandrel.
- No Seam Failures: Zero risk of splitting along the weld line under pressure.
- Consistent Wall Thickness: Better burst pressure ratings for hydraulic applications.
- Marine Standard Compliance: Seamless 5086 easily passes standard marine pressure tests.
This is why 5086 is widely specified in ASTM B210 (drawn seamless tubes) and ASTM B241 (seamless extruded tubes) standards.

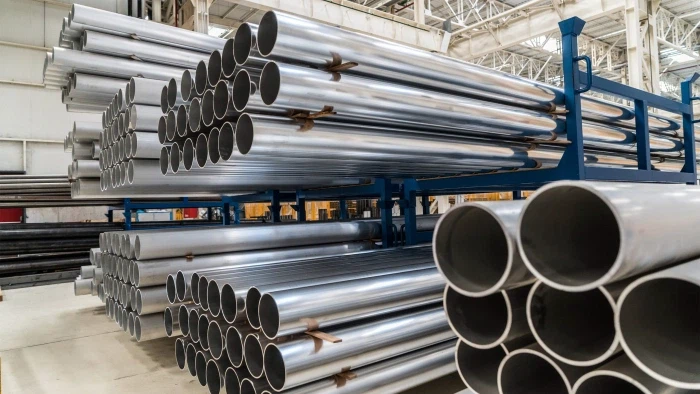

GNEE Supply Capability for 5086 Aluminum Tubing
As a reliable, large-scale aluminum manufacturer, GNEE bypasses the trading company markups to supply you directly. We control the extrusion and drawing process to ensure zero internal defects.
| Feature / Specification | Details |
|---|---|
| Manufacturer | GNEE (direct supply, bypassing trading companies) |
| Product Types | Seamless Pipe, Structural Extruded Tube, Round, Square, Rectangular |
| Tempers Available | O, H111, H112, H32 |
| Size Range | OD: 4mm – 600mm Wall Thickness: 1mm – 25mm |
| Standards | ASTM B210, ASTM B241, EN 755 |
| Special Services | Custom cutting, deburring, marine class society certifications upon request |
| Quality Control | Direct extrusion & drawing process, ensuring zero internal defects |
Looking for reliable marine-grade 5086 aluminum pipes for your next project?
Stop risking your project on uncertified materials. Get a fast quote from GNEE with full mill test certificates (MTC) and custom size options.
